Why Machine Shop Fabrication is Essential for Modern Industries

Machine shop fabrication is the backbone of modern manufacturing. It’s all about changing raw materials into precise, high-quality parts necessary for various industries.

Quick Answer:
– Overview: Machine shop fabrication involves processes like cutting, milling, welding, and CNC machining to create customized parts from metals and other materials.
– Importance: Ensures that industries have access to precise, durable, and customized components, reducing downtime and improving efficiency.
– Industries Served: Automotive, aerospace, electronics, oil & gas, and more.

Machine shop fabrication is crucial because it delivers the exact parts needed to keep critical machinery running. These services are essential for manufacturing companies that can’t afford delays or errors. Think of the automotive and aerospace industries, which rely on precise, high-quality components to ensure safety and performance.

With the rise of CNC precision machining, machine shops now offer unparalleled accuracy and consistency. They produce parts with minuscule tolerances that meet even the strictest standards. This technology is indispensable for enterprises seeking reliable and durable component parts.

What is Machine Shop Fabrication?

Machine shop fabrication is the process of creating parts and products from raw materials using various techniques. This process is vital in industries like automotive, aerospace, electronics, and construction. It involves several steps to transform raw materials into functional components.

Key Processes in Machine Shop Fabrication

Cutting: Cutting is the first step in the fabrication process. It involves separating raw material into specific shapes and sizes. This can be done using traditional tools like saws or more advanced methods like laser cutting, plasma cutting, and waterjet cutting. Each method offers different levels of precision and efficiency. For instance, laser cutting provides highly accurate cuts with minimal waste.

Bending: Bending reshapes the material into the desired form without breaking it. This is done using machines like press brakes. Bending is crucial for creating angles and curves in metal sheets, which are often needed in custom parts and assemblies.

Welding: Welding joins two or more pieces of material by melting them together using heat and pressure. This creates a strong bond and is essential for building robust structures. Different welding techniques, such as MIG, TIG, and spot welding, are used depending on the material and requirements.

Assembly: Assembly involves putting together various fabricated components to create a complete product. This step ensures that all parts fit together correctly and function as intended. Fasteners, adhesives, and other joining methods are often used in this stage.

Powder Coating: Powder coating is a finishing process that applies a dry powder to the surface of the fabricated parts. The parts are then heated, causing the powder to melt and form a durable, protective layer. This improves the appearance and provides corrosion resistance, making the parts more durable.

Materials Used in Fabrication

Metals: Metals like steel, aluminum, copper, and titanium are commonly used in machine shop fabrication. Each metal has unique properties that make it suitable for different applications. For example, aluminum is lightweight and corrosion-resistant, making it ideal for aerospace components, while steel is strong and durable, perfect for construction and automotive parts.

Plastics: Plastics are also used in fabrication, especially for parts that require insulation, lightweight, or flexibility. Common plastics include PVC, ABS, and polycarbonate. These materials are often used in electronics and consumer products.

Composites: Composites combine two or more materials to create a product with improved properties. For example, fiberglass combines glass fibers with resin to create a strong yet lightweight material. Composites are used in various industries, including aerospace and automotive, for parts that need to be both strong and lightweight.

Machine shop fabrication is a complex process that involves multiple techniques and materials to create high-quality, precise components. At TMC Technologies, we leverage advanced machinery and skilled expertise to meet the diverse needs of our clients.

Up next, we’ll explore the differences between machining and fabrication and how each plays a unique role in manufacturing.

Machining vs. Fabrication

Machining Techniques

Machining involves removing material from a workpiece to achieve the desired shape and dimensions. This process is highly precise and is used to create parts with tight tolerances.

Here are the key machining techniques:

• Milling: Involves rotating cutting tools with multiple edges to remove material. This technique is excellent for creating flat surfaces, contours, and complex shapes.

• Drilling: Uses rotating drills to create holes in a workpiece. It’s essential for applications requiring holes for fasteners or fluid passage.

• Turning: Performed on a lathe, where the workpiece rotates while a cutting tool removes material. This is ideal for creating cylindrical or conical shapes.

• Grinding: Uses abrasive wheels to remove small amounts of material with high precision. It’s perfect for achieving smooth finishes and tight tolerances.

• Electrical Discharge Machining (EDM): Uses electrical discharges to erode material, allowing for the creation of intricate and complex shapes.

Machining is best suited for applications requiring high precision, such as aerospace and automotive industries. It allows for tolerances as small as +/- 0.0002, making it ideal for parts that need to fit together perfectly.

Fabrication Techniques

Fabrication involves adding material to create components, often starting from flat sheets of metal. This process is more about shaping and assembling parts than removing material.

Here are the key fabrication techniques:

• Bending: Shapes metal by applying force to create angles and curves. Press brakes are commonly used for this process.

• Punching: Uses a punch press to create holes or shapes by shearing material. It’s efficient for repetitive tasks.

• Cutting: Involves slicing through materials using tools like saws, plasma cutters, or laser systems. It’s the first step in many fabrication projects.

• Welding: Joins metal pieces using extreme heat and sometimes additional materials. Various welding methods include MIG, TIG, and stick welding.

Fabrication is ideal for building parts from scratch and is often used in industries like construction, electronics, and medical devices. While not as precise as machining, it’s highly effective for producing large quantities of parts quickly and cost-effectively.

At TMC Technologies, we excel in both machining and fabrication. Our advanced machinery and skilled team enable us to deliver high-quality, custom solutions custom to your needs.

Next, we’ll dive into CNC precision machining and explore its benefits and services.

CNC Precision Machining

Benefits of CNC Machining

CNC Precision Machining stands out for its best precision and consistency. CNC machines can create parts with incredible accuracy, often down to the micrometer level. This precision ensures that every part is consistent, reducing errors and rejections.

Efficiency is another major benefit. CNC machines automate the production process, which speeds up manufacturing. This is especially useful for producing multiple pieces, as it saves a lot of time compared to manual methods.

Consistency is also a key advantage. Once a design is programmed into a CNC machine, it can produce identical parts repeatedly without variation. This is crucial for industries where uniformity is essential, like aerospace and automotive.

Cost Savings come from reduced labor costs and minimized material waste. Automation cuts down on manual work, which lowers production costs. These savings can be passed on to customers, making CNC machining a cost-effective solution.

Safety is improved as well. CNC machines operate behind safety doors, reducing the risk of accidents and ensuring a safer working environment for operators.

CNC Machining Services

At TMC Technologies, we offer a range of CNC machining services to meet various industrial needs:

CNC Milling

CNC Milling involves using rotary cutters to remove material from a workpiece. This process is highly versatile and can create complex shapes and features. It’s ideal for producing precision parts with intricate details.

CNC Turning

CNC Turning uses a rotating workpiece and a stationary cutting tool to shape the material. This technique is perfect for creating cylindrical parts like shafts, bolts, and custom fasteners. CNC turning ensures high accuracy and smooth finishes.

Multi-Axis Machining

Multi-Axis Machining takes CNC to the next level by allowing the cutting tool to move in multiple directions. This capability enables the creation of highly complex and detailed parts. It’s especially useful in industries that require intricate components, such as aerospace and medical devices.

By leveraging these advanced CNC machining techniques, TMC Technologies ensures that we deliver high-quality, precise, and efficient manufacturing solutions. Whether you need prototypes, small-scale samples, or large-scale production runs, we have the expertise to meet your needs.

Next, we will explore our custom fabrication services and the industries we serve.

Custom Fabrication Services

At TMC Technologies, our custom fabrication services cater to a wide range of industries and specialized projects. We pride ourselves on our ability to deliver high-quality custom parts, prototypes, and small-run jobs custom to meet our clients’ unique requirements.

Industries Served

Automotive: We specialize in creating custom parts for the automotive industry, including intricate engine components and robust suspension systems. Our precision machining ensures that every part meets the highest standards of performance and safety.

Aerospace: The aerospace industry demands precision and reliability. Our custom fabrication services produce high-precision components that meet the stringent requirements of aerospace applications, from structural parts to intricate mechanisms.

Electronics: In the world of electronics, rapid prototyping and production are crucial. We provide custom machined parts that support the development and manufacturing of cutting-edge electronic devices.

Oil & Gas: The oil and gas industry requires durable and reliable components. Our custom fabrication services deliver high-quality parts that withstand the harsh conditions of oil and gas exploration and production.

Specialized Fabrication Projects

Custom Bumpers: For off-road enthusiasts and automotive customizers, we fabricate custom bumpers that combine durability with aesthetic appeal. Our bumpers are designed to withstand extreme conditions while enhancing the vehicle’s look.

Suspension Systems: We design and fabricate suspension systems custom to specific vehicle requirements. Whether for racing or off-roading, our custom suspension systems improve performance and handling.

Race Cars: With nearly 20 years of experience in building race cars, we offer custom fabrication services that cater to the unique needs of racing enthusiasts. From roll cages to aerodynamic components, we ensure every part contributes to the car’s speed and safety.

Our dedication to quality, precision, and customer satisfaction makes us a trusted partner in custom fabrication. Whether you need a one-off part or a small production run, TMC Technologies is here to help.

Next, we will answer some frequently asked questions about machine shop fabrication.

Frequently Asked Questions about Machine Shop Fabrication

What is fabrication in a machine shop?

Fabrication in a machine shop involves creating parts and structures from raw materials like metal. This process includes cutting, bending, welding, and assembly. For example, at TMC Technologies, we use advanced tools like CNC plasma tables and fiber laser machines to ensure precise and efficient fabrication.

What is the difference between a machine shop and a fabricator?

A machine shop focuses on cutting, shaping, and finishing metal parts. Think of it as sculpting metal with high-tech tools. They use machines like CNC mills and lathes to make parts with exact dimensions.

A fabricator, on the other hand, puts things together. They cut and bend metal, then weld or bolt it into larger structures. Imagine building with very strong Legos. Fabrication is ideal for big projects where many parts need to fit together just right.

What is the difference between CNC and fabrication?

CNC (Computer Numerical Control) machining is all about precision. It uses computer-controlled machines to cut and shape materials with incredible accuracy. This process is perfect for making parts that need to be exactly the same every time.

Fabrication involves forming and joining materials to create a final product. It includes techniques like bending, cutting, and welding. While fabrication can also be precise, it focuses more on assembling parts into a complete structure.

In summary, CNC is a method within machining that ensures high precision, while fabrication is a broader process that includes forming and assembling materials. Both are crucial in creating high-quality parts and products.

Next, we’ll explore the benefits of CNC machining and the services we offer at TMC Technologies.

Conclusion

In conclusion, machine shop fabrication and CNC precision machining are essential processes in modern manufacturing. While CNC machining focuses on removing material to achieve precise dimensions, fabrication involves forming and assembling materials into final products. Both techniques are crucial for creating high-quality parts and assemblies used in various industries like automotive, aerospace, electronics, and oil & gas.

At TMC Technologies, we pride ourselves on our expertise and commitment to delivering top-notch machine shop fabrication services. Our advanced CNC capabilities, combined with our comprehensive range of fabrication techniques, ensure that we meet all your manufacturing needs with accuracy and efficiency.

Contact us to learn more about how we can help you achieve your manufacturing goals. Whether you need custom parts, prototypes, or small-run jobs, we are here to provide the best solutions custom to your specific requirements.

For more information on our services and capabilities, explore our capabilities overview and see how we can help you bring your vision to life.

Thank you for considering TMC Technologies for your CNC machining and fabrication needs. We look forward to working with you and delivering exceptional results.

Precision and Efficiency: The Essentials of CNC Steel Machining

CNC machining of steel is a cornerstone of modern manufacturing. It’s a process lauded for its precision, speed, and production efficiency. If you’re looking for reliable and high-quality steel components for your industrial machinery, understanding this process is key.

For a quick overview, here are the basics of CNC machining steel:

• What it is: CNC (Computer Numerical Control) machining uses computer software to control machine tools that cut and shape steel.
• Why it’s important: It offers unparalleled precision, consistency, and efficiency in manufacturing custom parts.
• What to consider: Factors like the grade of steel, machinability, heat management, and surface finishes are crucial.

Unlike manual machining methods, CNC technology allows for tighter tolerances and more complex geometries. This makes it ideal for industries needing durable and precise components, such as automotive, medical, and electronics sectors.

Understanding the intricacies of CNC steel machining can help you choose the right materials and processes for your specific needs.

If you grasp these fundamentals, you are already on the way to achieving better manufacturing outcomes. In the following sections, we’ll dive deeper into each aspect of CNC steel machining.

What Is CNC Steel Machining?

CNC steel machining is a highly automated process that uses computer numerical control (CNC) to shape steel into custom machined parts and prototypes. This technology has revolutionized manufacturing by providing high precision, repeatability, and efficiency.

Numerical Control and Computer Numerical Control

Numerical control (NC) began as a method to automate machine tools using coded instructions. These instructions directed the machine’s movements, allowing for more consistent and precise operations compared to manual control.

Computer Numerical Control (CNC) takes this concept further by using computers to control the movements of tools like drills, lathes, mills, and grinders. CNC machines follow pre-programmed sequences of commands, known as G-code, to produce parts with high accuracy.

The Automated Process

The CNC machining process starts with a digital blueprint created using computer-aided design (CAD) software. This blueprint is then translated into manufacturing instructions using computer-aided manufacturing (CAM) software. The resulting G-code directs the CNC machine on how to move, what speeds to use, and how deep to cut.

Custom Machined Parts and Prototypes

CNC machining is ideal for creating custom machined parts and prototypes. The process can handle complex geometries and tight tolerances, making it suitable for industries that require high precision, such as automotive, medical, and electronics.

For example, CNC steel machining is used to produce:

• Medical instruments: Precision and sterility are crucial.
• Automotive parts: Durability and exact fit are essential.
• Electronics components: Miniaturization and accuracy are key.

Benefits and Challenges

Benefits:
– Precision: CNC machines can achieve tolerances as tight as ±0.001 inches.
– Efficiency: Once set up, CNC machines can run continuously, producing parts quickly.
– Consistency: Every part produced is identical, reducing variability.

Challenges:
– Cost: Initial setup and programming can be expensive.
– Complexity: Requires skilled operators and programmers.
– Material Limitations: Not all types of steel are equally machinable.

Understanding these aspects of CNC steel machining can help you make informed decisions for your manufacturing needs. Next, we’ll explore the different grades of steel suitable for CNC machining and their specific properties.

Grades of Steel for CNC Machining

When it comes to CNC machining steel, choosing the right grade is crucial. Different grades offer unique properties, making them suitable for specific applications. Let’s dive into some common steel grades and their characteristics.

4140 Steel

4140 Steel is a low alloy steel containing chromium, molybdenum, and manganese. This combination provides excellent strength, ductility, and toughness.

Applications: Commonly used in couplings, spindles, bolts, nuts, and automotive parts.

Mechanical Properties:
– Yield Tensile Strength: 655 MPa
– Shear Modulus: 80 GPa
– Elongation at Break: 19%
– Hardness: 197 Brinell
– Density: 7.87 g/cm³

Despite its good machinability, 4140 steel may require pre-and post-heat treatment, especially for welding.

4130 Steel

4130 Steel has a higher level of alloying elements compared to regular steel. It includes iron, carbon, chromium, manganese, molybdenum, phosphorus, silicon, and sulfur.

Applications: Often used in aircraft engine mountings and various construction projects due to its ability to withstand high stress.

Mechanical Properties:
– Yield Tensile Strength: 460 MPa
– Shear Modulus: 80 GPa
– Elongation at Break: 20%
– Hardness: 217 Brinell
– Density: 7.87 g/cm³

While it’s cost-effective and tough, 4130 steel isn’t the easiest to weld.

1018 Steel

1018 Steel is a mild carbon steel, making it highly weldable and machinable. It consists of iron, carbon, manganese, phosphorus, and sulfur.

Applications: Commonly used for tie rods, spindles, shafts, and other machinery parts.

Mechanical Properties:
– Yield Tensile Strength: 310 MPa
– Shear Modulus: 78 GPa
– Elongation at Break: 15%
– Hardness: 131 Brinell
– Density: 7.87 g/cm³

This steel grade is excellent for carburized parts but has moderate mechanical properties and isn’t compatible with many finishing processes.

1045 Steel

1045 Steel is a medium carbon steel with iron, carbon, silicon, manganese, and sulfur or phosphorus.

Applications: Used in axles, bolts, gears, shafts, and studs, especially where water resistance is crucial.

Mechanical Properties:
– Yield Tensile Strength: 450 MPa
– Shear Modulus: 60 GPa
– Elongation at Break: 12%
– Hardness: 170 Brinell
– Density: 7.87 g/cm³

It’s versatile and strong but not ideal for products requiring very high tensile strength.

1215 Steel

1215 Steel is a free machining steel with higher sulfur content, making it ideal for automatic screw machine processes.

Applications: Suitable for studs, pins, screws, couplings, and hose fittings.

Mechanical Properties:
– Yield Tensile Strength: 415 MPa
– Shear Modulus: 80 GPa
– Elongation at Break: 10%
– Hardness: 167 Brinell
– Density: 7.87 g/cm³

While it allows for higher machining rates, it isn’t very weldable and lacks the strength of other cold-drawn grades.

Understanding these steel grades and their properties helps in selecting the right material for your CNC precision machining projects.

Next, we’ll discuss the benefits and challenges of using CNC steel parts.

Benefits and Challenges of CNC Steel Parts

When it comes to CNC machining steel, there are several benefits and challenges to consider. Understanding these can help you make informed decisions for your projects.

Benefits

Machinability: Steel alloys often have good machinability, which means they can be cut, drilled, and shaped with precision. For instance, Stainless Steel 303 is designed for improved machinability, making it easier to achieve high-quality finishes.

Corrosion Resistance: Certain steel grades, like Stainless Steel 304 and Stainless Steel 316, offer excellent corrosion resistance. This makes them ideal for applications in harsh environments, such as medical instruments and food processing equipment.

Strength and Durability: Steel is incredibly strong and durable. Grades like Stainless Steel 17-4PH have high tensile strength and can withstand heavy loads, making them suitable for gears, machine parts, and heavy construction equipment.

Surface Finish: Steel parts often exhibit excellent surface finishes, which can be further improved through post-processing techniques like powder coating and nickel plating. This not only improves aesthetics but also adds extra layers of protection against wear and corrosion.

Challenges

Heat Sensitivity: Some steel grades are sensitive to heat. High temperatures during machining can alter the microstructure of the material. For example, Grade 17-4 stainless steel may need to be solution heat treated after machining to maintain its properties.

Geometric Complexity: While steel is versatile, it can be challenging to machine complex geometries. The material’s hardness can make intricate cuts and shapes more difficult to achieve, often requiring specialized tools and techniques.

Tool Wear: The hardness and abrasiveness of certain steel alloys can lead to increased tool wear. This is especially true for high-chromium stainless steels, which can quickly dull cutting tools, leading to higher operational costs.

Cost: Generally, machining steel is more expensive than machining other materials like aluminum. This is due to the material’s hardness, which requires more robust tooling and slower machining speeds, increasing labor and equipment costs.

Understanding these benefits and challenges can help you optimize your CNC machining projects, ensuring you choose the right steel grade and machining processes for your needs.

Next, we’ll dive into the various surface finishes and post-processing options available for steel parts.

Surface Finishes and Post-processing Options for Steel Parts

Surface finishes and post-processing steps are crucial in CNC machining steel. They not only improve the functionality and aesthetics of the parts but also improve their durability and performance. Let’s explore some common techniques:

Powder Coating

Powder coating involves applying a dry powder to the steel surface. This powder is then heated to form a smooth, durable coating. The finish is typically between 0.15 and 0.3 mm thick.

Benefits:
– Increases corrosion resistance.
– Provides a uniform, attractive appearance.
– Available in various colors and textures.

Applications:
– Automotive parts.
– Outdoor equipment.
– Household appliances.

Carburizing

Carburizing is a heat treatment process that hardens the surface of steel parts. The steel is heated in the presence of carbon-rich materials like carbon monoxide or charcoal.

Benefits:
– Improves surface hardness.
– Improves wear resistance.

Applications:
– Gears.
– Shafts.
– Other high-wear components.

Nickel Plating

Nickel plating involves electroplating a thin layer of nickel onto the steel surface, usually around 0.1 mm thick.

Benefits:
– Improves corrosion resistance.
– Increases wear resistance.
– Provides an attractive, shiny finish.

Applications:
– Electronic connectors.
– Fasteners.
– Decorative items.

Grinding

Grinding smooths the steel surface by removing irregularities using a grinding wheel.

Benefits:
– Achieves precise dimensions.
– Provides a smooth finish.
– Prepares the surface for further processing or coating.

Applications:
– Precision machinery parts.
– Tools.
– Mold components.

Enhancing Functionality and Aesthetics

Surface finishes are not just for looks. They play a vital role in enhancing the functionality of precision machined parts:

• Corrosion resistance: Surface finishes like powder coating and nickel plating protect steel parts from rust and corrosion, extending their lifespan.
• Wear resistance: Processes like carburizing and grinding improve the durability of parts, making them more resistant to wear and tear.
• Aesthetics: A well-chosen surface finish can make steel parts look more appealing, adding value to the final product.

In summary, selecting the right surface finish can significantly impact the performance and appearance of your CNC machined steel parts.

Next, we’ll explore the differences between machining steel and aluminum.

Machining Steel vs. Aluminium: What’s the Difference?

When it comes to CNC machining, choosing between steel and aluminum can be crucial. Each metal has unique properties that affect machinability, speed, cost, and suitability for different product types.

Machinability

Steel is strong but harder to machine. It has a higher Brinell hardness range (80–600) compared to aluminum (around 15). This means steel is tougher, leading to more wear on cutting tools and slower machining speeds.

Aluminum, on the other hand, is softer and lighter. This makes it easier and faster to machine. Aluminum’s lower hardness allows for quicker cutting and less tool wear, making it a preferred choice for rapid manufacturing cycles.

Speed

Because aluminum is lighter, machinists can work on it at a faster pace. Aluminum also cools quicker than steel, which reduces cycle times. In contrast, machining steel takes longer due to its hardness and slower cooling rate.

Cost

Generally, CNC machining steel costs more than aluminum. This is due to the additional time, labor, and tool wear involved. However, the choice often depends on the specific requirements of the project. If both materials are suitable, aluminum might be the more cost-effective option.

Product Type

The type of product you need is a key factor in choosing between steel and aluminum.

• High-Temperature Environments: Steel is more suitable because of its higher melting point.
• Lightweight Parts: Aluminum is ideal due to its lower density and excellent strength-to-weight ratio.
• Conductivity Needs: Aluminum is better for parts requiring good thermal and electrical conductivity.

Applications

Steel is often used in heavy-duty applications like automotive parts, machinery, and construction. Its high strength and durability make it ideal for products exposed to extreme conditions.

Aluminum is commonly used in aerospace, automotive, and consumer electronics. Its lightweight and corrosion resistance make it perfect for parts that need to be both strong and light.

Understanding these differences helps you make informed decisions for your CNC machining projects. Next, let’s dive into the various applications of CNC steel parts.

Applications of CNC Steel Parts

CNC machining steel is crucial for many industries. Its strength, durability, and versatility make it ideal for a wide range of applications. Let’s explore some key areas where CNC steel parts shine.

Medical Instruments

CNC steel parts are vital in the medical field. They are used to create surgical instruments like scalpels, forceps, and biopsy tubes. These tools require high precision and reliability to ensure patient safety.

For instance, CNC machines can produce scalpels with ultra-sharp edges, essential for delicate surgeries.

Automotive Industry

In the automotive industry, CNC steel parts are everywhere. They are used in engine parts, transmission gears, and suspension systems. Steel’s high strength and durability make it perfect for components that must withstand extreme conditions.

Fun Fact: Many high-performance car engines use CNC-machined steel parts to ensure maximum efficiency and longevity.

Electronics Industry

The electronics industry also benefits from CNC steel machining. Precision-machined steel parts improve the performance and lifespan of electronic devices. These parts are essential for housings, brackets, and other components that require both strength and precision.

Example: The demand for highly precise, micro-sized steel parts is growing with the miniaturization of electronic components.

Machinery Parts

CNC steel parts are critical for various machinery. They are used in gears, shafts, and couplings. These parts need to be strong and durable to handle the heavy loads and stresses of industrial machinery.

Case Study: Many construction equipment manufacturers rely on CNC-machined steel parts for their machinery, ensuring reliability and performance.

Vacuum and Pressure Vessels

Vacuum and pressure vessels require materials that can withstand high pressure and extreme conditions. CNC steel parts are often used in these applications due to their strength and durability. These vessels are essential in industries like chemical processing and food production.

Did You Know? Stainless steel is commonly used for pressure vessels because of its excellent corrosion resistance.

Gears

Gears are another critical application of CNC steel parts. They are used in everything from automotive transmissions to industrial machinery. CNC machining ensures that these gears are precise and durable, providing reliable performance in demanding applications.

Quote: “The precision and consistency of CNC-machined gears are best, making them essential for high-performance applications.”

In summary, CNC steel parts are indispensable across various industries, from medical instruments to automotive components. Their strength, precision, and durability make them a top choice for many applications.

Next, let’s compare the top 10 steels for CNC machining.

Top 10 Steels for CNC Machining Compared

Choosing the right steel for CNC machining is crucial for getting the best results. Here, we’ll compare the top 10 steels commonly used for CNC machining, focusing on their machinability, advantages, and applications.

1. SS 303

Type: Free Machining Stainless Steel

Description: One of the most readily available and highly machinable austenitic grades.

Advantages:
– Excellent machinability
– Good corrosion resistance
– Moderate cost

Disadvantages:
– Cannot be hardened by heat treatment
– Not suitable for marine applications

Applications:
– Electronic hardware, nuts, bolts, screws, aircraft fittings, bushings

2. SS 416

Type: Free Machining Stainless Steel

Description: Offers superior machinability compared to other stainless steels.

Advantages:
– Outstanding machinability
– Moderate corrosion resistance
– Good strength

Disadvantages:
– Poor weldability
– Limited availability
– Not suitable for chlorine or marine environments

Applications:
– Valves, pump shafts, gears, nuts, bolts

3. SS 304

Type: Stainless Steel

Description: One of the most common stainless steel alloys with good weldability.

Advantages:
– Good machinability
– Excellent corrosion resistance
– Cost-effective

Disadvantages:
– Susceptible to stress corrosion cracking above 60°C
– Other stainless steels offer better resistance to pitting and crevice corrosion

Applications:
– Food handling, utensils, automotive parts, architectural applications, heat exchangers, screws

4. SS Grade 17-4

Type: PH Stainless Steel

Description: Martensitic precipitation-hardened steel with up to 30% chromium.

Advantages:
– Very high toughness
– Excellent strength and corrosion resistance

Disadvantages:
– Requires efficient and careful heat treatment

Applications:
– Nuclear reactors, aircraft turbines, oil and gas applications

5. 1045

Type: Medium Carbon Steel

Description: Versatile medium carbon steel with good strength and hardness.

Advantages:
– Good strength and hardness
– Good weldability and machinability

Disadvantages:
– May require post-heat treatment to relieve stress

Applications:
– Axles, bolts, light gears, forged connecting rods

6. 1018

Type: Mild Carbon Steel

Description: Best steel for carburized parts with excellent weldability.

Advantages:
– Excellent weldability and machinability

Disadvantages:
– Moderate mechanical properties such as strength and ductility

Applications:
– Tie rods, anchor pins, spindles, machinery parts

7. 1144

Type: Free Machining Medium Carbon Steel

Description: Resulfurized carbon steel with excellent wear resistance.

Advantages:
– High strength and hardness
– Good resistance to deformation and wear

Disadvantages:
– Poor overall weldability

Applications:
– Gears, pistons, screws, nuts, rods

8. 4140

Type: Low Alloy Steel

Description: Alloy steel with low chromium, molybdenum, and manganese.

Advantages:
– Good machinability in annealed condition
– High fatigue, wear, and impact resistance

Disadvantages:
– May require post-heat treatment

Applications:
– Couplings, nuts, bolts, automotive and machinery parts, spindles

9. 8620

Type: Low Alloy Steel

Description: Provides good strength and ductility, responds well to nitriding.

Advantages:
– Good strength and wear resistance

Disadvantages:
– Poor response to flame or induction hardening

Applications:
– Piston pins, fasteners, camshafts, gears, chains

10. 8630

Type: Low Alloy Steel

Description: High-strength alloy with good hardenability.

Advantages:
– Good response to heat treatment

Disadvantages:
– Heat treatment may be required before and after machining or welding

Applications:
– Gears, crankshafts, forged connectors, block valves

Understanding the unique properties of these steels can help you select the best material for your CNC machining project. Each steel type offers distinct advantages and challenges, making it essential to match the material to your specific application needs.

Frequently Asked Questions about CNC Machining Steel

Can you CNC machine steel?

Yes, you can CNC machine steel. CNC machining steel is a common practice in many industries due to steel’s durability and strength. From automotive parts to medical instruments, CNC machining can produce precise, high-quality steel components. The key is selecting the right grade of steel and understanding its properties to achieve the best results.

What is the best steel for CNC machine?

The best steel for CNC machining depends on your specific project needs. 1018 Steel is excellent for general purposes due to its high weldability and machinability, making it suitable for parts like shafts and spindles. 1215 Steel is ideal for automatic screw machine processes, thanks to its free-machining properties. For applications requiring higher strength, 1045 Steel is a good choice because of its toughness and moderate tensile strength.

How much does it cost to CNC metal?

The cost of CNC machining metal can vary based on several factors:

• Hourly Rates: Includes machine operation, maintenance, and energy consumption.
• Material Costs: The price of the raw steel required for your project.
• Labor Costs: Skilled operators are needed for setup and quality control.
• Complexity and Tolerances: More complex parts or tighter tolerances can increase costs due to additional programming and slower machining speeds.

A basic formula to estimate costs is: (Hourly Rate + Material Costs + Labor) x (Complexity/Tolerances Multiplier) = Total Machining Cost. For a more precise estimate, tools like the Xometry Instant Quoting Engine℠ can provide detailed cost breakdowns based on your specific project parameters.

Conclusion

At TMC Technologies, we pride ourselves on delivering high-quality CNC lathe parts that meet the stringent demands of modern manufacturing. Whether you need prototypes or full-scale production runs, our advanced CNC machines and skilled machinists ensure precision and reliability in every part we produce.

High-Quality CNC Lathe Parts

Our commitment to quality is unwavering. We use cutting-edge technology and rigorous quality control processes to guarantee that each part meets or exceeds industry standards. From medical instruments to automotive components, our CNC machined parts are crafted to perfection.

Tool Design and Fabrication

Beyond manufacturing, we specialize in custom tool design and fabrication. Our expert team can develop tools custom to your specific needs, whether for intricate metal parts or high-speed production runs. We use the latest materials and design techniques to create tools that offer superior durability, precision, and performance.

Custom Applications

Every client has unique needs, and we focus on customization to provide custom solutions. Our services encompass a wide range of CNC techniques, including milling, turning, sawing, drilling, and grinding. This versatility allows us to handle various materials and complex details, ensuring that your project is executed flawlessly.

Partnering for Success

Choosing TMC Technologies means opting for a partner who understands the nuances of high-precision CNC work. We are committed to helping you push the boundaries of what’s possible, ensuring that your projects not only meet but exceed industry standards.

Visit our Capabilities Overview to explore how our CNC machining services can transform your manufacturing capabilities. Let us help you open up the full potential of high-precision CNC lathes and propel your business towards unparalleled success.

In the field of precision machining, every detail counts. With TMC Technologies, you can be confident that your work will not only meet but exceed expectations. Join us on this exciting journey towards innovation, efficiency, and best quality.

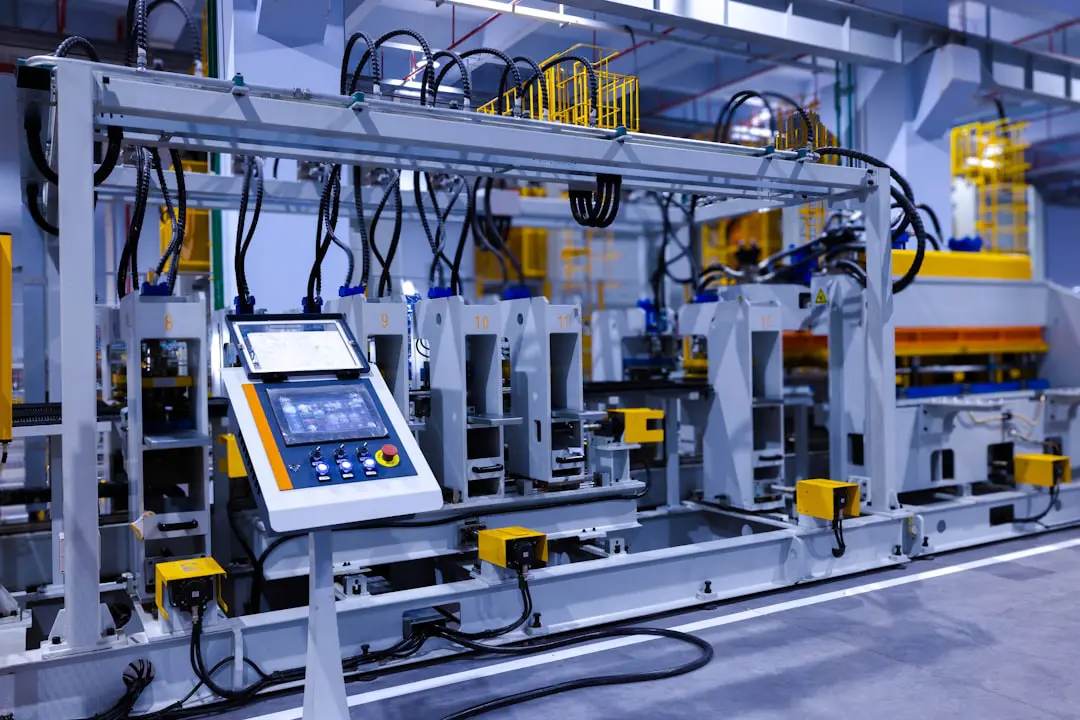

Choosing Between CNC Mills and Lathes: An Introduction

When it comes to CNC mills and lathes, both machines provide exceptional precision and efficiency in machining. However, choosing the right one for your project can significantly impact the quality and speed of production. In this brief overview, we’ll summarize the key differences to help you make an informed decision quickly.

• CNC Milling:
• Uses rotating cutting tools.
• Best for complex shapes and flat surfaces.

• Ideal for parts needing grooves, pockets, and multiple planes.

• CNC Turning (Lathe):

• Rotates the workpiece against stationary tools.
• Perfect for cylindrical and conical shapes.
• Commonly used for shafts, screws, and knobs.

CNC machining is a vital process in modern manufacturing. Known as a subtractive method, it involves removing material from a solid piece to create intricate components. This precision machining process offers superior accuracy, making it ideal for industries like automotive, aerospace, and custom fabrication.

Understanding the basics of CNC mills and lathes, along with their applications, will guide you in selecting the appropriate machine for your project.

What are CNC Mills and Lathes?

CNC Mills

CNC mills are powerful machines in precision machining. They use rotating cutting tools to shape a stationary workpiece. Think of it like a sculptor carving a statue from a block of stone. This process is ideal for creating complex shapes, flat surfaces, and deeper holes.

The workpiece remains fixed while the cutting tools move around it. This movement happens along multiple axes—X, Y, and Z. The machine follows a CAD (Computer-Aided Design) program to make precise cuts.

CNC Lathes

CNC lathes work differently. Here, the workpiece rotates while the cutting tools stay stationary. Imagine holding a piece of clay on a potter’s wheel and shaping it with your hands. This process is perfect for crafting cylindrical parts and conical shapes.

The rotating workpiece allows the lathe to create uniform shapes, which is ideal for parts like shafts, screws, and knobs. The machine operates mainly on the X and Z axes to achieve the desired shape.

Both CNC mills and lathes are essential in subtractive manufacturing. They remove material to create precision machined parts. While CNC mills excel at complex geometries, CNC lathes are unbeatable for cylindrical and conical parts.

Understanding these machines is crucial for selecting the right tool for your project. Next, we’ll explore the differences between CNC mills and lathes in more detail.

Differences Between CNC Mills and Lathes

CNC Milling Process

CNC mills keep the material stationary while rotating the cutting tools around it. This setup is ideal for creating complex shapes, flat surfaces, and deeper holes. The cutting tools move along three axes: X, Y, and Z, which allows for intricate designs and precise cuts.

Imagine a sculptor using different chisels to carve a statue from a block of stone. The CAD program (Computer-Aided Design) guides the cutting tools to achieve the desired shape. This process is perfect for projects that require multiple angles and detailed work.

CNC Lathe Process

CNC lathes operate differently. They spin the material while keeping the cutting tools stationary. This method is perfect for creating cylindrical shapes such as screws, shafts, and knobs. The machine operates mainly on the X and Z axes to achieve the desired shape.

Think of a potter’s wheel where the clay spins, and the potter shapes it with their hands. The CNC lathe is similar but uses precise cutting tools instead of hands.

Rotation Differences

• CNC Mills: Stationary material, rotating tools.
• CNC Lathes: Spinning material, stationary tools.

Ideal Parts

• CNC Mills: Best for complex shapes, flat surfaces, grooves, and pockets.
• CNC Lathes: Ideal for cylindrical parts, conical shapes, and rounded components.

Speed and Efficiency

• CNC Mills: Generally handle faster cutting speeds, making them suitable for high-volume production.
• CNC Lathes: Often operate at lower speeds but excel in producing uniform pieces with tight tolerances.

Specific Cuts

• CNC Mills: Capable of making angled surfaces, deeper holes, and intricate details.
• CNC Lathes: Focus on turning, threading, and tapering for cylindrical objects.

Understanding these differences helps in selecting the right machine for your specific needs. Next, we’ll look into the various applications of CNC mills and lathes.

Applications of CNC Mills and Lathes

CNC Mills Applications

CNC mills are versatile machines capable of creating complex shapes and detailed features. They work by using rotating tools to cut away material from a stationary workpiece. This makes them ideal for:

• Complex Shapes: CNC mills excel at producing intricate designs and geometries. For example, aerospace components like airfoils and titanium shrouds often require the detailed work that only a CNC mill can provide.

• Flat Surfaces: These machines are perfect for creating precise, flat surfaces. Think of aircraft seats in the aerospace industry, where both comfort and durability are key.

• Grooves and Pockets: CNC mills can carve out detailed grooves and pockets, which are essential in creating parts like valve components used in aerospace applications.

• Planes: For applications requiring large, flat planes, such as engine housings, CNC mills provide the necessary precision and accuracy.

Industries: CNC mills are widely used in industries such as aerospace, automotive, and electronics. For example, the automotive industry uses CNC mills to create engine parts, dashboard panels, and gearboxes.

Precision Components: CNC mills are essential for producing high-precision parts with tight tolerances. This makes them invaluable in manufacturing medical instruments and research equipment.

CNC Lathes Applications

CNC lathes specialize in producing cylindrical parts. They work by rotating the workpiece while a stationary tool removes material. This makes them ideal for:

• Cylindrical Parts: CNC lathes are perfect for creating round objects like shafts, screws, and knobs. These components are crucial in both the aerospace and automotive industries.

• Screws and Shafts: Lathes can produce precision screws and shafts, essential for power transmission in aeronautical applications.

• Knobs and Disc Cams: These machines excel in making uniform, cylindrical parts like knobs and disc cams, which are often used in electrical connectors and valve systems.

Industries: CNC lathes are commonly used in industries that require high-precision cylindrical parts. This includes sectors like aerospace, automotive, and medical equipment.

Custom Fabrication: CNC lathes are also great for custom fabrication. They allow for quick changes in tooling and setup, making them ideal for creating custom parts like oxygen generation components in aircraft.

Understanding the specific applications of CNC mills and lathes can help you choose the right machine for your project. Next, we’ll discuss how to select the best CNC machine based on your project requirements.

Choosing the Right CNC Machine for Your Project

Selecting the right CNC machine can be a game-changer for your project. Here’s what you need to know about material compatibility, precision and complexity, and cost considerations to make the best choice.

Material Compatibility

CNC mills and lathes can work with a variety of materials, each with its own properties.

Metal bar stock is commonly used, including:

• Aluminum: Easy to machine, cost-effective, but not ideal for high-stress parts.
• Steel: Tough and durable, suitable for parts exposed to stress and heat.
• Brass and Copper Alloys: Excellent for electrical components due to good conductivity.
• High-Nickel Alloys, Titanium, and Carbon Alloys: Ideal for aerospace and medical applications requiring high strength and corrosion resistance.
• Plastics: Used for lightweight and non-conductive parts.

Tip: Consult your machine shop to understand the metals they work with and the machine’s capabilities.

Precision and Complexity

The level of precision and complexity needed in your project will influence your choice.

Tight Tolerances: If your project requires extremely tight tolerances, like those in aerospace or medical fields, you need a high-precision CNC machine. CNC mills excel in creating complex shapes with high precision, while CNC lathes are better for cylindrical parts.

Tough Metals: Not all CNC machines can handle very tough metals like titanium or high-nickel alloys. Advanced CNC machines with higher torque and specialized tooling are necessary for these materials.

Cost Efficiency: While high-precision machines come at a higher cost, they offer greater accuracy and efficiency, reducing wastage and errors. This can be more cost-efficient in the long run.

Project Requirements

When choosing between a CNC mill and a lathe, consider what your project needs:

• Complex Shapes: For intricate designs, flat surfaces, and deeper holes, a CNC mill is your best bet.
• Cylindrical Parts: For parts like screws, shafts, and knobs, a CNC lathe is ideal.

Example: If you are producing custom aerospace components, a CNC mill might be better for creating complex geometries, while a CNC lathe would be perfect for turning cylindrical parts with tight tolerances.

Cost Considerations

Budget is always a factor. High-end CNC machines with advanced features will cost more but can save money by increasing efficiency and reducing errors.

Tip: Investing in a versatile machine can be more cost-effective in the long run, especially for high-volume production runs.

By considering these factors, you can make an informed decision to ensure your project meets its specifications with precision and efficiency.

Frequently Asked Questions about CNC Mills and Lathes

What are CNC mills and lathes?

CNC mills and CNC lathes are both precision machining tools used to create custom parts. They operate under computer numerical control (CNC), which means they use pre-programmed software to guide their actions.

• CNC mills: These machines keep the workpiece stationary while rotating cutting tools shape it. They are ideal for creating complex shapes, flat surfaces, and deeper holes.

• CNC lathes: These machines rotate the workpiece against stationary cutting tools. They excel at making cylindrical parts like screws, shafts, and knobs.

What is the difference between a CNC mill and a manual lathe?

The main differences between a CNC mill and a manual lathe are in accuracy, time consumption, and tooling.

• Accuracy: CNC mills are highly accurate because they follow precise digital instructions. Manual lathes rely on the operator’s skill, which can introduce variability.

• Time Consumption: CNC mills are faster for complex parts due to automation. Manual lathes take more time as each cut must be manually guided.

• Rapid Tooling: CNC mills can quickly switch between different tools and operations. Manual lathes require manual tool changes, which slows down the process.

What is the difference between a mill and a lathe?

The primary differences between a mill and a lathe are in their cutting surface orientation and the types of parts they produce.

• Rotating Workpiece vs. Stationary Tool: In a lathe, the workpiece rotates while the cutting tool remains stationary. This setup is perfect for cylindrical parts.

• Stationary Workpiece vs. Rotating Tool: In a mill, the workpiece stays stationary while the cutting tool moves around it. This allows for the creation of flat surfaces and intricate shapes.

• Cylindrical Parts vs. Flat Surfaces: Lathes are best for cylindrical shapes, while mills excel at flat surfaces and complex geometries.

Understanding these differences helps you choose the right machine for your specific project needs.

Next, we’ll dive into common applications of CNC mills and lathes to give you a clearer picture of their capabilities.

Conclusion

At TMC Technologies, we understand how crucial precision and quality are in CNC machining. Whether you need a CNC mill or lathe, we have the expertise to guide you to the right choice for your project.

Custom Applications

Every machining project is unique. That’s why we specialize in creating custom solutions custom to your specific requirements. Whether you’re in aerospace, automotive, or medical manufacturing, we have the experience and technology to deliver precision machined parts that meet the highest standards.

High-Quality CNC Components

Our advanced CNC machines and skilled machinists ensure that every part we produce meets your exact specifications. We use a variety of CNC techniques like milling, turning, drilling, and grinding to deliver parts that not only meet but exceed industry standards.

Tool Design and Fabrication

Beyond machining, we excel in custom tool design. Our tools are crafted to optimize performance and durability, leveraging the latest materials and techniques. We also offer comprehensive fabrication services, including grinding, heat treating, and light assembly, making us a one-stop solution for all your CNC needs.

Choosing TMC Technologies means partnering with a company committed to pushing the boundaries of precision machining. We invite you to explore our Capabilities Overview to see how we can help you achieve unparalleled success in your projects.

With TMC Technologies, you can open up the full potential of high-precision CNC lathes and mills, propelling your business towards success.

When searching for the best metal fabrication shop near me, you want results that meet your needs quickly and accurately. To save you time, here’s a quick list of top fabricators who excel in CNC machining and precision machining:

1. AP Precision Metals, Inc.
   San Diego-based, specializing in CNC machining, laser cutting, and powder coating.

2. Interstate Metal Fabrication
   Known for sheet metal, ductwork, and plasma-arc cutting with SMACNA standards.

3. Performance Fabrication
   Experts in high-performance vehicle custom fabrication and consultations.

4. Keystone Sandblasting
   Specializes in caliper piston housings, brake parts, and sandblasting.

5. TMC Technologies
   CNC machine shop in Carroll, Iowa, known for CNC lathe parts and custom applications.

Fabrication is a crucial process in many industries, including automotive, aerospace, and electronics. Several techniques fall under this umbrella, such as cutting, bending, welding, and assembling metal parts. Companies often turn to CNC machining for its precision and efficiency, producing high-quality parts with tight tolerances.

Whether it’s creating a one-off prototype or mass-producing components, choosing the right shop can make a significant difference in the performance and longevity of your machinery. We’ll dig deeper into what you should look for in a metal fabrication shop and highlight some of the best options available.

What is Metal Fabrication?

Metal fabrication is the process of transforming raw metal materials into finished products through various techniques. This involves precise operations such as cutting, bending, welding, and assembling. It’s a fundamental part of manufacturing, crucial for industries like automotive, aerospace, and electronics.

Key Processes in Metal Fabrication

Cutting: This initial step involves slicing the raw metal into specific shapes, often using advanced machinery like CNC machines and laser cutters.

Bending: Once cut, the metal is shaped into the desired form using tools such as press brakes and tube bending machines, which can execute both simple and complex bends.

Welding: This process involves joining metal parts together using various techniques, including Gas Metal Arc and Gas Tungsten Arc welding.

Assembling: The final step is the assembly of the cut and bent pieces into a complete product, which may involve additional welding, fastening, or riveting.

Difference Between Fabrication and Machining

Fabrication involves creating a product from raw materials through processes like cutting, bending, and assembling. It’s suitable for both heavy and light materials and is ideal for constructing large structures.

Machining, on the other hand, primarily focuses on removing material to shape a specific part, often utilizing CNC technology for precision. This method is crucial for creating high-tolerance parts used in various applications.

Raw Materials vs. Finished Products: Fabrication starts with raw materials and results in a complete product, whereas machining often begins with a preformed piece, refining it into a finished part.

Assembly: Fabrication typically involves assembling various pieces into a final product. In contrast, machining may require less extensive assembly, focusing more on the precision of individual parts.

Understanding these distinctions helps in selecting the appropriate process for your project, whether you need a single custom part or mass-produced components.

How to Choose the Right Fabrication Shop

Choosing the right fabrication shop is crucial for the success of your project. Here are the key factors to consider:

Evaluating Quality Control

Quality control is essential. Opt for shops that adhere to ISO Standards and LEAN Manufacturing practices, ensuring your parts meet stringent quality requirements and minimizing errors.

Error Prevention: Continuous monitoring throughout the manufacturing process is vital. Ensure the shop has comprehensive inspection stages and systematic quality assurance procedures.

Assessing Turnaround Time

Turnaround time can significantly impact your project. Look for shops with an efficient layout and predictable delivery schedules, which help in providing fast service without compromising quality.

Considering Cost and Budget

Cost is always a consideration. Seek cost-effective solutions and competitive pricing that align with your budget.

Importance of Customer Service

Excellent customer service can greatly enhance your experience. Choose shops known for positive client reviews, effective communication, and robust support services.

By focusing on these factors, you can find the right fabrication shop that meets your specific needs and ensures the success of your project.

Frequently Asked Questions about Metal Fabrication Shops

What is the difference between fabrication and welding?

Fabrication is a broad term that covers the entire process of turning raw materials into a final product. This involves cutting, bending, welding, and assembling various metal parts.

Welding, on the other hand, is just one step within the fabrication cycle. It involves joining two pieces of metal together by melting their edges and adding a filler material. While welding is crucial, it’s only a part of the larger process of fabrication.

In short, fabrication is the whole journey from raw metal to finished product, while welding is one of the stops along the way.

What is done in a fabrication shop?

A fabrication shop is where the magic happens. Here are some key activities:

• Cutting: Using tools like CNC machines and plasma cutters to slice metal into specific shapes.
• Stamping: Pressing designs into metal sheets.
• Punching: Creating holes in metal sheets.
• Forming: Bending metal into desired shapes.
• Welding: Joining metal pieces together.

These processes turn raw metal into useful parts and structures. For example, TMC Technologies uses advanced techniques to produce high-quality ductwork and metal components.

What is the difference between a machine shop and a fabricator?

Machine shops and fabricators both work with metal, but they focus on different tasks.

• Machine shops: These are like high-tech workshops where skilled machinists use CNC machines to cut, shape, and finish metal parts. Think of them as sculptors, making each part perfect. TMC Technologies in Iowa specializes in CNC precision machining, producing exact parts like gears and custom components.

• Fabricators: These are more like builders. They take metal parts and assemble them into larger structures. They cut, bend, and weld metal to create things like bridges, buildings, and high-performance vehicles. TMC Technologies focuses on custom fabrication for various applications.

Machine shops create the parts, and fabricators put those parts together into larger assemblies.

Conclusion

Choosing the right metal fabrication shop can make or break your project. Whether you need precise components or complex assemblies, the quality and expertise of the shop you select are crucial.

At TMC Technologies, we specialize in CNC precision machining. Our team is dedicated to producing high-quality components that meet your exact specifications. With over 40 years of experience, we understand the importance of precision and reliability in every project.

Our advanced CNC technology allows us to offer custom applications custom to your specific needs. From prototype development to full-scale production, we handle projects of all sizes with the utmost care and attention to detail.

But we don’t just stop at machining. Our comprehensive services include 3D modeling, CNC turning, grinding, and assembly. We strive to turn your concepts into reality, ensuring that each part we produce is of the highest quality.

For more information on how we can assist with your machining needs, visit our CNC Metal Fabrication Services page. Let us help drive your projects to success with our precision, quality, and customer-focused approach.

CNC Live Tooling: Precision and Efficiency in Modern Machining

CNC live tooling is essential for anyone aiming to lift their precision machining capabilities. But what exactly does it offer?

• Precision: Achieve tolerances as tight as ±0.0005 inches.
• Versatility: Perform milling, drilling, tapping, and more in one setup.
• Efficiency: Reduce downtime by eliminating the need for multiple machines.

When you’re in the market for CNC lathes with live tooling, it’s crucial to understand their immense benefits. Live tooling integrates the capabilities of a mill into a lathe, allowing complex operations to be completed with precision and in a single setup. This means less operational downtime, fewer errors, and more consistent results.

Consider the following key points:
– Precision: Ensuring tight tolerances for high-quality parts.
– Efficiency: Reducing the need for secondary operations, saving time and costs.
– Versatility: Allowing multiple machining processes without reorienting the workpiece.

Investing in CNC live tooling is a smart move. It improves your ability to perform various tasks such as turning, facing, threading, drilling, boring, and more—all while maintaining the workpiece’s orientation to the main spindle. This integrated approach not only boosts productivity but also ensures superior finish and longevity of the tools used.

Before purchasing, consider factors like tool life, machine stability, and the specific needs of your operations. Whether you are dealing with large, deep-pocket parts or small, intricate pieces, customizing your machine’s tooling can make all the difference in achieving optimal results.

Start reaping the benefits of CNC live tooling for your manufacturing processes today.

Understanding CNC Live Tooling

Live tooling is a transformative feature in CNC machining, enhancing a standard CNC lathe into a multifunctional machine capable of handling complex parts with precision. Unlike static tools, which are fixed and only perform turning operations, live tools are equipped with their own drive mechanisms, allowing them to execute operations such as milling, drilling, and tapping. This integration enables the machining of intricate designs without repositioning the workpiece, significantly boosting both versatility and productivity.

Static Tool vs. Live Tool

Static tools are stationary, used primarily for turning operations. They are effective for basic tasks but limited in scope. Live tools, however, are dynamic; they can rotate and perform additional machining operations, making them indispensable for complex and precision tasks.

Operations Enabled by Live Tooling

Live tooling allows for diverse operations:

• Milling: Crafting flat surfaces or complex patterns.
• Drilling Off-Center: Positioning holes away from the main axis.
• Cross Milling: Executing operations across the workpiece.
• Tapping: Creating precisely threaded holes.
• Grooving/Slotting: Designing specific grooves or slots.
• Thread Milling: Producing threads in a single setup.

Benefits of Using Live Tooling

The adoption of live tooling in CNC lathes brings numerous advantages:

• Increased Efficiency: Multiple operations can be performed in one setup.
• Improved Precision: Ensures high accuracy and superior finishes.
• Reduced Setup Time: Minimizes the need for multiple setups and machines.
• Versatility: Facilitates a wide range of machining tasks efficiently.

Types of CNC Live Tooling

Understanding the different types of CNC live tooling is crucial for optimizing your machining operations. Each type is designed for specific tasks, enhancing efficiency and quality.

Radial Heads

Radial heads operate perpendicular to the spindle’s axis, perfect for side operations like milling slots or drilling holes.

Axial Heads

Axial heads work parallel to the spindle axis, ideal for tasks such as drilling and tapping along the centerline.

Swivel Heads

Swivel heads can adjust their angle, offering the ability to perform operations at various angles, which is essential for complex part designs.

Multi-Spindle Heads

Multi-spindle heads hold multiple tools, enabling simultaneous operations and significantly reducing cycle times, ideal for high-volume production settings.

By selecting the appropriate type of live tooling, you can greatly enhance the capabilities of your CNC machines, ensuring precision and efficiency in your manufacturing processes.

Benefits of Investing in Live Tooling

Investing in CNC live tooling can significantly enhance your machining operations, offering a multitude of benefits:

Milling

Live tooling enables milling directly on a lathe, allowing the creation of complex shapes and features without transferring the workpiece to another machine, thus saving time and improving accuracy.

Drilling

Perform precise drilling operations, including off-center drilling, crucial for complex parts.

Cross Milling

Cross milling involves milling across the workpiece, essential for intricate features like slots and grooves.

Tapping

Tapping with live tooling ensures precise thread creation with minimal risk of misalignment.

Grooving

Easily perform grooving or slotting operations, ideal for creating keyways and other features.

Thread Milling

Thread milling offers flexibility and precision, allowing for the creation of threads with varying diameters and pitches.

Y-Axis

Incorporating a Y-axis expands machining capabilities, enabling complex operations and the production of parts with intricate geometries.

Automation

Enhance automation with features like bar feeds and parts catchers, which streamline the machining process, reduce manual intervention, and increase efficiency.

By leveraging these benefits, CNC live tooling can revolutionize your machining operations, boosting productivity and ensuring high-quality results.

Selecting the Right Live Tooling for Your Needs

Choosing the right CNC live tooling for your lathe is crucial for optimizing performance and ensuring precision. Here’s what you need to consider:

Tool Holder Style and Size

Different projects require different tool holder styles and sizes. For example, radial heads are ideal for side operations like milling slots, while axial heads excel at drilling and tapping along the centerline. Swivel heads offer flexibility by allowing operations at various angles, and multi-spindle heads can hold multiple tools for simultaneous operations.

Tip: Always check the specifications of your lathe to ensure compatibility with the tool holder style and size you choose.

Bolt Hole Pattern (BHP)

The Bolt Hole Pattern (BHP) is another critical factor. This pattern determines how the tool holder mounts to your lathe’s turret. Verify the BHP to ensure a secure fit, which is essential for maintaining precision and stability during operations.

Quote: “A small mismatch in the bolt hole pattern can lead to significant issues in precision machining,” says Preben Hansen, president of Platinum Tooling Technologies Inc..

Quality and Performance

Quality should never be compromised. Look for tool holders made from alloy steel and precision-ground components. These materials provide the durability and accuracy needed for high-performance machining.

Case Study: One company improved their cross-milling application by switching to an ER32AX output tool. This change reduced their cycle time from 262 seconds to 172 seconds, saving them $45,000 annually.

American-Made

Opting for American-made tool holders ensures you get high-quality products that meet rigorous standards. These tools are often more reliable and come with better customer support.

Fact: Each driven tool from our product line is precision machined from alloy steel and ground to ensure the highest quality. This commitment to quality makes American-made tool holders a trustworthy choice.

By carefully considering these factors, you can select the right CNC live tooling that meets your specific needs, enhancing both productivity and precision in your machining operations.

Ready to get the most out of your CNC lathe? Let’s dive into the next section: Maximizing Your CNC Lathe with Live Tooling.

Maximizing Your CNC Lathe with Live Tooling

When it comes to getting the most out of your CNC lathe, live tooling can be a game-changer. Here’s how you can maximize productivity and performance with the right tools and setups.

Productivity and Performance

Using live tooling can significantly boost your shop’s productivity. By allowing multiple operations like milling, drilling, and tapping without reorienting the workpiece, you save time and reduce errors. This also means fewer setups, which translates to higher efficiency.

Heimatec is a top name in the industry, known for its durable and high-performance live tools. With over 40,000 designs, Heimatec offers tools that meet the most demanding applications, ensuring you get the best results every time.

High Pressure Coolant

High-pressure coolant is essential for maintaining tool life and improving cutting performance. Look for live tools that offer internal coolant capabilities up to 2000 psi. This helps in better chip evacuation and reduces heat buildup, which is crucial for precision machining.

Speed Increasers

Sometimes, the turret RPM isn’t enough to handle specific tasks. In such cases, speed increasers can be invaluable. They can offer ratios up to 1:4 with capabilities of reaching 24,000 rpm. This is particularly useful for intricate machining tasks that require higher speeds.

Multi-Spindle Tools

For shops that handle complex parts, multi-spindle tools can be a huge advantage. These tools allow you to perform multiple operations simultaneously, further reducing cycle times. Multi-spindle configurations can be customized to meet specific needs, making them versatile and efficient.

Output Systems

Choosing the right output system is crucial for the performance and durability of your live tooling. Options include ER collet, Weldon, arbors, Heimatec Capto, HSK, and CAT/SK/BT. Each system has its own benefits, so select one that aligns with your specific requirements for precision and ease of use.

Bearing Systems

The bearing system in your live tooling affects its stability and precision. Heimatec offers a combination of high-precision spindle bearings (ABEC 7) and optional Timken bearings (ABEC 5). These bearings ensure maximum performance, stability, and rigidity, which are essential for high-precision work.

Gear Systems

Heimatec uses gears made from high-resistance gear steel that are specially hardened, ground, and lapped in sets. This ensures smooth torque transmission and minimal backlash, which are critical for maintaining accuracy and tool life.

By focusing on these key areas, you can significantly improve the capabilities of your CNC lathe. Investing in high-quality live tooling and accessories will not only improve your productivity but also ensure consistent precision and longer tool life.

Next, let’s address some of the most common questions about CNC live tooling.

Frequently Asked Questions about CNC Live Tooling

What does live tooling mean in CNC?

Live tooling refers to tools on a CNC lathe that can rotate and perform additional operations like milling, drilling, tapping, and more. Unlike static tools, which only cut while the workpiece spins, live tools have their own drive mechanisms. This allows them to move and rotate independently, enabling complex machining tasks without needing to reposition the workpiece. This capability significantly improves the versatility and efficiency of CNC lathes.

What is the difference between a live tool and a static tool?

The main difference between live tools and static tools lies in their functionality:

• Static Tools: These are stationary tools that only cut when the workpiece is rotating. They are used for basic turning operations.
• Live Tools: These tools can rotate and move, allowing for additional operations like milling, drilling, and tapping while the workpiece is still in the lathe. Live tools are driven by their own motors and can perform multiple tasks in one setup, reducing production time and increasing precision.

What are the different types of live tools?

There are several types of live tools commonly used in CNC lathes, each designed for specific operations:

• Radial Tools: These rotate perpendicular to the chuck axis and are ideal for milling and drilling on the cylindrical surface of the workpiece.

• Axial Tools: These rotate parallel to the chuck axis and are perfect for drilling off-center holes or creating threads on flanges.

• Multi-Spindle Tools: These tools can perform multiple operations simultaneously, increasing efficiency and reducing cycle times.

• Tapping Tools: Designed specifically for creating threads, these tools rotate and apply axial force to cut threads accurately.

• Boring Tools: Used for enlarging existing holes or creating new ones, these tools offer high precision and minimal vibration.

• Gear Hobbing Tools: Specialized for cutting gears, these tools can rotate at different speeds and angles to create precise gear profiles.

• Grinding Tools: These are used for grinding operations, such as finishing external surfaces or internal bores.

Understanding these types of live tools can help you choose the right one for your specific machining needs, ensuring optimal performance and efficiency.

Next, we’ll dive into how to select the right live tooling for your specific needs.

Conclusion

Choosing the right CNC live tooling for your lathe can significantly improve your machining capabilities. With the right tools, you can achieve higher precision, better finishes, and longer tool life, all while increasing productivity and reducing costs.

At TMC Technologies, we understand the importance of quality and innovation in CNC machining. We offer a range of high-quality CNC components, including advanced toolroom lathes and Hardinge super-precision machines. These are designed to meet the stringent requirements of modern manufacturing, ensuring that you can achieve the utmost accuracy and efficiency in your work.

Beyond supplying top-notch machines, we specialize in custom tool design and fabrication. Our expert team can help you develop tools custom to your specific needs, whether it’s for intricate metal parts or high-speed production runs. We use the latest materials and design techniques to create tools that offer superior durability, precision, and performance.

Partnering with TMC Technologies means opting for a partner who understands the nuances of high-precision CNC lathe work. We are committed to helping you push the boundaries of what’s possible, ensuring that your projects not only meet but exceed industry standards.

We invite you to explore how our CNC machining services can transform your manufacturing capabilities. Visit our Capabilities Overview to learn more about how we can support your journey towards unparalleled success in custom applications and beyond.

In the field of precision machining, every detail counts. Let us help you ensure that your work not only meets but exceeds expectations. With TMC Technologies, open up the full potential of high-precision CNC lathes and propel your business towards unparalleled success.

How CNC Machines Revolutionize Metal Fabrication

If you’re searching for CNC machine for metal fabrication, you’re interested in how these high-tech machines can shape, cut, and finish metal with precision.

Key points:
– Numerical control (NC): Automation of tools via computer programming.
– Subtractive manufacturing: Begins with a solid piece of metal; material is removed to achieve the desired shape.
– Precision and flexibility: CNC machines offer best accuracy and customization.

CNC machines are essential tools in modern manufacturing. They use numerical control (NC), which relies on computer programming to automate and guide tool movements. This streamlines the fabrication process and ensures consistent quality.

Operating through subtractive manufacturing, these machines start with a solid block of metal and remove material bit by bit to create intricate designs. Common types include CNC lathes and mills, which are pivotal in producing precision parts for industries like automotive and aerospace.

Understanding these basics can help you appreciate the crucial role CNC machines play in modern metal fabrication.

The Evolution of CNC in Metal Fabrication

The journey of CNC (Computer Numerical Control) technology in metal fabrication is a tale of innovation and progress. It began in the 1940s and 1950s with the development of the first CNC machines, which were essentially traditional tools improved with motors and rudimentary computer systems. These early machines used punched tape to feed instructions to the motors, allowing for more precise and automated operations.

From Manual to Digital

Before CNC, metal fabrication was a manual process. Skilled machinists operated lathes, mills, and other tools by hand, which was time-consuming and prone to human error. The introduction of CNC technology revolutionized this process. By the 1960s and 1970s, digital computers began to replace analog controls, enabling even greater accuracy and repeatability.

Technological Advancements

CNC technology has come a long way since its inception. Modern CNC machines are highly sophisticated, incorporating advanced software like SolidWorks and MasterCam X. These programs allow machinists to work within extremely tight tolerance parameters of +/-.001 inch and at speeds up to 12,000 RPM. This level of precision is essential for industries that require high-quality, consistent parts, such as aerospace and automotive.

Specialized Machines

Today’s CNC machines are not limited to just lathes and mills. They include a wide variety of specialized machines like Fiber Laser Cutting Machines, Plasma Cutting Machines, and Water Jet Cutting Machines. These machines offer different advantages depending on the material and the specific requirements of the job.

For example, Fiber Laser Cutting Machines are excellent for cutting sheet metal, brass, aluminum, and stainless steel with high precision. Plasma Cutting Machines are more budget-friendly and ideal for cutting thicker materials with less focus on edge finishes. Water Jet Cutting Machines use high-pressure water to cut through materials and are commonly used in aerospace and automotive applications.

Integration and Automation

The integration of CNC technology with other advanced manufacturing techniques is another significant advancement. Modern CNC machining centers can perform multiple operations like milling and drilling without manual intervention, thanks to automatic tool changers and workpiece clamping systems.

Moreover, the combination of CNC with emerging technologies like 3D printing and automation is creating new possibilities. Hybrid additive-subtractive manufacturing is one such innovation, offering the best of both worlds by combining the precision of CNC with the flexibility of 3D printing.

The Future is Now

The future of CNC in metal fabrication looks promising. With ongoing advancements in AI and sensor technology, the goal is to achieve flexible manufacturing systems that can adapt to changing demands. These smart factories will be capable of producing high-quality parts with minimal human intervention, ensuring efficiency and consistency.

In summary, the evolution of CNC technology has transformed metal fabrication from a labor-intensive, manual process to a highly automated, precise, and efficient operation. This technology continues to evolve, pushing the boundaries of what is possible in the manufacturing world.

Types of CNC Machines Used in Metal Fabrication

Fiber laser machines, plasma cutting machines, water jet cutting machines, CNC lathes, and CNC mills are all integral to modern metal fabrication. Each type of machine offers unique capabilities that can be leveraged depending on the specific requirements of a project.

Fiber Laser Machines

Fiber laser machines utilize a concentrated beam of light to precisely cut materials such as sheet metal, brass, aluminum, and stainless steel. These machines are known for their speed and accuracy, making them indispensable in any metal fabrication shop.

Plasma Cutting Machines

Plasma cutting machines are cost-effective and efficient, using a high-speed jet of hot plasma to cut through electrically conductive materials like steel. They are particularly useful in industries where both speed and precision are valued.

Water Jet Cutting Machines

Water jet cutting machines employ high-pressure water streams to cut through materials. This method is beneficial for handling heat-sensitive materials, ensuring high precision without compromising material integrity.

CNC Lathes and Mills

CNC lathes are perfect for creating cylindrical parts, while CNC mills are versatile tools capable of performing various cutting operations. Both types of machines are essential for producing high-quality, precision machined parts in industries such as aerospace and automotive.

These machines form the backbone of modern metal fabrication, enabling the production of complex parts with high precision and efficiency.

Materials and Their Applications in CNC Metal Fabrication

The choice of material is crucial in CNC metal fabrication. Each metal has unique properties that make it suitable for specific applications. Let’s explore some common metals and their uses.

Aluminum

Aluminum is a popular choice due to its high machinability and excellent strength-to-weight ratio. It’s lightweight, making it ideal for industries like aerospace and automotive. Aluminum is also highly ductile, which allows for more complex shapes and designs.

• Applications: Aircraft components, automotive parts, and consumer electronics.

Stainless Steel

Stainless steel is known for its corrosion resistance and high tensile strength. It’s a versatile material used in environments where durability and resistance to rust are essential.

• Applications: Medical instruments, kitchen appliances, and construction materials.

Mild Steel

Mild steel offers high machinability and weldability with significant stiffness. It’s cost-effective and widely used in general fabrication.

• Applications: Structural components, machinery parts, and automotive frames.

Brass

Brass boasts low friction and excellent electrical conductivity. Its golden appearance also makes it suitable for decorative applications.

• Applications: Electrical connectors, musical instruments, and plumbing fittings.

Copper

Copper is renowned for its excellent thermal and electrical conductivity. It’s often used in electrical components due to its efficiency in conducting electricity.

• Applications: Electrical wiring, heat exchangers, and plumbing.

Alloy Steel

Alloy steel combines high strength and toughness with fatigue resistance. This makes it suitable for heavy-duty applications.

• Applications: Gears, shafts, and high-stress structural components.

Tool Steel

Tool steel is characterized by its high hardness and stiffness, making it perfect for cutting tools and dies.

• Applications: Cutting tools, dies, and molds.

Specialty Metals

Titanium

Titanium is known for its strength and light weight, making it invaluable in the aerospace, automotive, and medical industries. It’s also highly resistant to corrosion.

• Applications: Aircraft components, medical implants, and high-performance automotive parts.

Inconel

Inconel is a high-strength, corrosion-resistant nickel alloy that performs well in extreme environments, such as those found in the aerospace and chemical industries.

• Applications: Jet engine components, gas turbines, and chemical processing equipment.

Invar

Invar is a nickel alloy noted for its very low coefficient of thermal expansion, making it ideal for high-precision applications.

• Applications: Precision instruments, aerospace components, and scientific instruments.

Understanding the properties and applications of these materials helps in selecting the right one for your CNC metal fabrication project. This ensures not only the efficiency of the process but also the quality and durability of the final product.

Advantages of CNC Metal Fabrication

Precision and Efficiency

CNC machines are renowned for their best precision. They can produce parts with incredible accuracy, often down to the micrometer level. This precision ensures that every part is consistent, reducing the chances of errors and rejections.

One of the key technologies enabling this precision is high-speed machining. CNC machines can operate at speeds of up to 12,000 RPM, allowing for rapid material removal and faster production times. This is particularly beneficial for complex prototypes and low-volume production runs.

Tight tolerances are another significant advantage. Using advanced design software like SolidWorks and MasterCam X, machinists can work within extremely tight tolerance parameters of +/-.001 inch. This level of accuracy is crucial for industries like aerospace and medical, where precision is paramount.

Customization and Reduced Waste

Customization is a standout feature of CNC machining. Whether you need a single prototype or a small batch of end-use parts, CNC machines can handle it all. This flexibility allows for the creation of intricate designs that would be impossible with manual machining.

CNC machining also leads to reduced waste. The controlled removal process ensures that only the necessary material is cut away, minimizing scrap. This not only saves on material costs but is also environmentally friendly. Less waste means a smaller carbon footprint, making CNC machining a sustainable choice.

Moreover, CNC machines can produce parts with consistent quality. Automation removes the variability associated with manual machining, ensuring that every part meets the exact specifications. This consistency is vital for maintaining high standards in production.

High-speed Machining and Tight Tolerances

High-speed machining capabilities of CNC machines translate into faster production times. This is particularly advantageous when milling multiple pieces, as it saves considerable time and labor costs. The ability to maintain tight tolerances ensures that each part is made to exact specifications, reducing the need for rework and increasing overall efficiency.

Prototypes and End-use Parts

CNC machining excels in producing both prototypes and end-use parts. For prototypes, the quick turnaround time allows for rapid testing and iteration, speeding up the product development cycle. For end-use parts, the precision and consistency of CNC machining ensure that the final product is of the highest quality.

Environmental Benefits

Finally, CNC machining offers several environmental benefits. The precision of the process reduces material waste, and the automation minimizes energy consumption compared to manual machining. By choosing CNC machining, companies can achieve their production goals while also contributing to environmental sustainability.

By understanding these advantages, you can make informed decisions for your manufacturing needs. In the next section, we will address some frequently asked questions about CNC metal fabrication.

Frequently Asked Questions about CNC Metal Fabrication

How much does metal CNC machining cost?

The cost of metal CNC machining varies based on several factors:

• Hourly Rates: This includes machine operation costs, depreciation, maintenance, and energy consumption.
• Material Costs: The price of the raw material used.
• Labor Costs: Skilled operators are needed for setup, supervision, and quality control.
• Complexity and Tolerances: More complex parts with tighter tolerances may require additional programming and setup time.

A simple formula to estimate the cost is:

(Hourly Rate + Material Costs + Labor) x (Complexity/Tolerances Multiplier) = Total Machining Cost

For a more precise estimate, using tools like the Xometry Instant Quoting Engine℠ can provide detailed cost breakdowns based on your specific project parameters.

What can you make with a metal CNC machine?

With a CNC machine, you can create almost any component that can be represented with a 3D CAD file. Examples include:

• Prototypes: Ideal for testing designs before full-scale production.
• End-use parts: Custom parts for various industries like aerospace, automotive, and medical.
• Complex Geometries: Advanced machines, like 5-axis CNC mills, can produce intricate designs with high precision.

The versatility of CNC machines makes them suitable for a wide range of applications, from simple brackets to complex aerospace components.

Can you provide vapor polishing on CNC plastics?

Yes, vapor polishing is available for CNC plastics. Specifically:

• Polycarbonate: Vapor polishing can be requested manually.
• Acrylic: Manual polishing is provided.

This service helps to achieve a smooth, glossy finish on plastic parts, enhancing both their appearance and performance.

By addressing these common questions, we aim to clarify the capabilities and costs associated with CNC metal fabrication. This information will help you make better-informed decisions for your manufacturing needs.

Conclusion

TMC Technologies

At TMC Technologies, we are dedicated to providing top-tier CNC precision machining services. Our commitment to quality is demonstrated through our stringent quality control measures and the advanced technology we employ. We offer tailored solutions designed to meet the specific needs of your manufacturing projects.

Industry Applications

CNC metal fabrication is essential across various sectors. It supports industries ranging from aerospace to automotive, and from electronics to medical devices, ensuring that components meet stringent specifications for safety and functionality.

Future Outlook

The future of CNC metal fabrication is bright, with ongoing advancements promising even greater precision, efficiency, and customization. The integration of Industry 4.0 technologies like IoT and cloud computing will further enhance real-time data monitoring, quality control, and process optimization.

At TMC Technologies, we are excited to continue leading the way in the CNC fabrication industry. We are committed to helping you leverage CNC machining to realize your production objectives.

For more insights into our CNC metal fabrication processes and services, visit our capabilities overview. Let’s collaborate to elevate your operations to new heights.
