Introduction

When it comes to CNC lathe and CNC milling, understanding their fundamentals is key. These machines are essential tools for custom fabrication and machining services, but they are used in different ways.

Instant Insight:

• CNC Lathe: Ideal for cylindrical and conical parts.
• CNC Mill: Perfect for complex shapes and flat surfaces.

CNC Machining involves using computerized controls to manipulate machine tools. It’s a subtractive process, meaning it starts with a solid block or bar stock and removes material to shape the final product. This is different from Additive Manufacturing, like 3D printing, which builds an object layer by layer.

Here’s a quick breakdown:

• Subtractive Manufacturing (CNC Machines): Starts with a solid piece, removes material.
• Additive Manufacturing (3D Printing): Builds the object from scratch, layer by layer.

CNC, or Computer Numerical Control, ensures precise cuts by following a detailed digital plan. This allows faster, more efficient, and much safer machining compared to traditional methods.

Understanding CNC Machining

CNC machining is a fascinating process that has revolutionized the manufacturing industry. To understand it better, let’s dive into some key concepts: Numerical Control, Computer Numerical Control (CNC), Automated Tools, and the Digital Plan.

Numerical Control (NC)

Numerical Control (NC) was the precursor to CNC. In the early days, machines were controlled using punched tape and basic programming. While this was a significant leap forward, it still had limitations. The process of creating the punch tapes was time-consuming and prone to human error.

A study highlighted that creating a punch tape could take up to 8 hours, and any mistake meant starting over.

Computer Numerical Control (CNC)

The advent of Computer Numerical Control (CNC) changed everything. A team at MIT developed a real-time computer system that drastically reduced the time to create punch tapes from 8 hours to just 15 minutes. This system used computers to control the machine tools, making the process faster, more accurate, and much less prone to errors.

The Air Force suggested creating a generalized programming language, which led to the development of what we now know as CNC. This allowed for more flexibility and made the technology accessible to a broader range of users.

Automated Tools

CNC machines use automated tools to perform precise cuts. These tools are controlled by a computer, which follows a pre-programmed set of instructions. These instructions are often in the form of G-code, which tells the machine where to cut, how fast to move, and other critical parameters.

For example, in a CNC mill, the cutting tools rotate around a stationary workpiece to create complex shapes. In a CNC lathe, the workpiece rotates while the cutting tools remain stationary, ideal for cylindrical parts like screws and shafts.

Digital Plan

At the heart of CNC machining is the digital plan. This plan starts with a digital blueprint created using Computer-Aided Design (CAD) software. The CAD software defines the mechanical dimensions of the part. This blueprint is then translated into manufacturing directives using Computer-Aided Manufacturing (CAM) software.

The CAM software generates the G-code, which the CNC machine reads to perform the necessary cuts. This entire process is highly automated, ensuring that each part meets the exact specifications outlined in the digital blueprint.

Advantages of CNC Machining

• Precision: CNC machines can achieve positioning accuracy down to 0.010mm and repeatability to 0.002mm.
• Efficiency: They can operate 24/7 without fatigue, meeting high-volume manufacturing demands.
• Flexibility: Easily adaptable to different tasks and designs.

CNC machining has applications in various industries, from aerospace to medical devices, thanks to its high precision and efficiency.

In the next section, we’ll explore how CNC lathes work and what makes them unique.

CNC Lathe Explained

CNC lathes are specialized machines designed to create cylindrical parts. They excel at producing components like screws, shafts, knobs, disc cams, and crankshafts. Let’s dive into how they work and why they are essential.

Rotates Workpiece

The core principle of a CNC lathe is its ability to rotate the workpiece. Unlike CNC milling machines, where the cutting tool rotates, in a CNC lathe, the workpiece spins on the spindle. This rotation allows the cutting tool to shape the material into the desired cylindrical form.

Turning Tools

CNC lathes use a variety of turning tools to achieve different cuts. These tools can perform operations like:

• Facing: Flattening the end of the workpiece.
• Turning: Removing material from the outside diameter.
• Boring: Enlarging an internal hole.
• Threading: Creating screw threads.

Applications

CNC lathes are essential for creating parts with rotational symmetry. Here are some common applications:

• Screws: Precision threads for fasteners.
• Shafts: Used in engines and machinery.
• Knobs: Custom shapes for user interfaces.
• Disc Cams: Components in mechanical systems for motion control.
• Crankshafts: Critical parts in engines to convert linear motion to rotational motion.

Real-World Example

At TMC Technologies, we use CNC lathes to produce high-quality, custom lathe parts with exceptional dimensional tolerances. Our state-of-the-art lathes are controlled by advanced computer programs, ensuring consistent, high-quality results, batch after batch.

Key Points to Remember

• CNC lathes are perfect for cylindrical parts.
• They rotate the workpiece, allowing precise shaping.
• Turning tools perform various operations like facing, turning, boring, and threading.

Up next, we’ll delve into CNC milling and how it handles more complex shapes and surfaces.

CNC Milling Unveiled

CNC milling machines are like the Swiss Army knives of the machining world. They can handle a wide range of tasks, making them incredibly versatile. Let’s break down how they work and what they can do.

Complex Shapes

Unlike CNC lathes, which are best for cylindrical parts, CNC milling machines excel at creating complex shapes. They can cut and shape materials into intricate designs, making them ideal for parts with lots of detail.

Rotates Cutting Tools

In a CNC mill, the workpiece stays still while the cutting tools rotate. These tools can move along multiple axes, allowing for precise cuts from various angles. This is perfect for creating complicated geometries that would be hard to achieve with other methods.

Flat Surfaces

One of the basic functions of a CNC mill is to create flat surfaces. This is essential for parts that need to fit together perfectly. The rotating cutters can skim off layers of material to achieve the desired flatness.

Deeper Holes

Need to drill deep holes? A CNC mill can do that too. The machine can plunge its cutting tool straight down into the material, creating deep, precise holes. This is useful for parts like engine blocks or custom housings.

Pockets

Pockets are recessed areas in a part. CNC mills can carve out these pockets with ease. This is especially useful for creating spaces for electronic components or other inserts.

Planes

Creating planes, or flat surfaces at various angles, is another strong suit of CNC milling. The machine can tilt its cutting tool to create angled surfaces, making it versatile for different design needs.

Grooves

Grooves are channels cut into the material. CNC mills can cut grooves of various shapes and sizes, useful for things like keyways or slots for fasteners.

Edges

Finally, CNC mills are excellent at shaping edges. Whether you need sharp corners or rounded edges, the machine can adjust its cutting path to meet your specifications.

Real-World Example

At TMC Technologies, we use CNC milling to produce everything from aerospace components to custom gears. Our advanced mills ensure that each part meets exacting standards, no matter how complex the design.

Key Points to Remember

• CNC mills are ideal for complex shapes and detailed designs.
• They rotate cutting tools to achieve precise cuts.
• Mills can create flat surfaces, deep holes, pockets, planes, grooves, and edges.

Next, we’ll explore the differences and similarities between CNC lathes and CNC milling machines, helping you decide which is right for your project.

Differences and Similarities

When it comes to CNC lathe and CNC milling, understanding the differences and similarities can help you make an informed decision for your project.

Rotation Method

The primary difference between these two machines lies in their rotation methods.

• CNC lathes rotate the workpiece against fixed cutting tools. Imagine holding a piece of clay on a potter’s wheel and shaping it with your hands or tools.
• CNC mills, on the other hand, keep the workpiece stationary while rotating the cutting tools around it. Think of a sculptor using different chisels to carve out a statue from a block of stone.

Ideal Parts

Each machine excels in creating specific types of parts.

• CNC lathes are perfect for cylindrical items. They are commonly used for making screws, shafts, knobs, disc cams, and crankshafts.
• CNC mills are better suited for complex shapes that require multiple angles and intricate details. They can create flat surfaces, deeper holes, pockets, planes, grooves, and edges.

Functionality

Both machines use subtractive manufacturing, but their functionalities vary.

• CNC lathes are typically more straightforward, focusing on rotational tasks. They excel in threading, knurling, and taper turning.
• CNC mills offer more versatility. They can handle a range of operations like milling, drilling, and tapping across multiple axes.

Subtle Differences

While both machines aim for precision, there are subtle differences in their execution.

• CNC lathes often provide faster cycle times for cylindrical shapes. They are generally simpler and more efficient for repetitive round components.
• CNC mills offer a wider range of tools and can handle more complex geometries. They are ideal for detailed and multi-faceted parts.

Speed and Efficiency

Speed and efficiency also differ between the two machines.

• CNC lathes tend to be quicker for tasks involving rotational symmetry. They can produce high volumes of identical parts efficiently.
• CNC mills might take longer due to the complexity of operations but offer more flexibility and precision for intricate designs.

Understanding these differences and similarities will help you choose the right machine for your specific needs. Up next, we’ll dive into how to choose between a CNC lathe and CNC milling based on material types, machine tolerances, and other factors.

Choosing Between CNC Lathe and CNC Milling

When deciding between CNC lathe and CNC milling, consider the following factors: material types, machine tolerances, design simplification, and cost reduction.

Material Types

The material you choose can significantly impact the effectiveness and cost of your project. Here are some common materials used:

• Aluminum: Lightweight, easy to machine, and affordable. Ideal for parts that don’t need to withstand extreme stress or temperatures.
• Steel: Durable and strong, suitable for parts that need to endure high stress and temperatures.
• Brass: Easy to machine and corrosion-resistant, making it perfect for decorative and electrical components.
• Copper Alloys: Excellent electrical conductivity and corrosion resistance.
• High Nickel Alloys: Great for high-temperature applications.
• Titanium: Strong, lightweight, and corrosion-resistant. Often used in aerospace and medical applications.
• Carbon: High strength and durability, ideal for parts subjected to high stress.

Machine Tolerances

CNC lathes and CNC mills offer different levels of precision:

• CNC Lathes: Ideal for parts requiring rotational symmetry. They can achieve tight tolerances, typically ranging from ±0.0002” to ±0.0005”.
• CNC Mills: Better suited for complex shapes and intricate designs. They offer flexibility in machining flat surfaces, deep holes, and grooves.

Design Simplification

Simplifying your design can reduce machining time and costs. Here are some tips:

• Reduce Complexity: Avoid intricate designs that require sophisticated tooling and setups.
• Limit Tight Tolerances: Only specify tight tolerances when absolutely necessary to avoid increased costs.
• Minimize Undercuts: Reducing the number of undercuts can significantly cut down on CNC programming time.

Cost Reduction

Cost is always a crucial factor. Here are some strategies to keep costs down:

• Bulk Orders: Larger quantities typically reduce the cost per unit due to economies of scale.
• Material Selection: Choose the right material for the job. While titanium might be necessary for some applications, aluminum or brass could be more cost-effective for others.
• Design Simplification: As mentioned, simpler designs require less machining time and fewer resources.

By considering these factors, you can make an informed decision on whether CNC lathe or CNC milling is the right choice for your project.

Next, we’ll address some frequently asked questions about CNC lathe and CNC milling.

Frequently Asked Questions about CNC Lathe and CNC Milling

What materials can be used with CNC lathes and mills?

CNC lathes and mills are versatile machines that can work with a variety of materials. Here’s a quick look at the most common ones:

• Metals: Aluminum, steel, brass, copper alloys, and high-nickel alloys. Titanium and carbon are also used but require machines designed for tougher metals.
• Plastics: ABS, polycarbonate, PEEK, nylon, acrylic, and Delrin.
• Wood: Certain types of CNC machines can handle wood, though this is less common.

The choice of material often depends on the part’s requirements, including its strength, flexibility, and resistance to heat or corrosion.

How do I choose between a CNC lathe and a CNC mill for my project?

Choosing between a CNC lathe and a CNC mill depends on several factors:

• Shape of the Part: CNC lathes are ideal for cylindrical parts like screws, shafts, and knobs. CNC mills are better for complex shapes, flat surfaces, and deeper holes.
• Material: Some materials are easier to machine with specific types of CNC machines. For example, aluminum is versatile and can be machined with both, but tougher metals may require a specialized machine.
• Tolerances and Complexity: Mills can handle more complex designs and tighter tolerances. If your part needs intricate details, a CNC mill might be the better choice.
• Cost: Consider the cost of both the material and the machining process. Aluminum is affordable and easy to machine, while titanium is more expensive and requires specialized equipment.

Can CNC lathes and mills work with plastics and wood?

Yes, CNC lathes and mills can work with plastics and wood, though not all machines are designed for these materials. Here’s what you need to know:

• Plastics: Both CNC lathes and mills can machine plastics like ABS, polycarbonate, and nylon. These materials are generally easier to work with compared to metals.
• Wood: Some CNC machines can handle wood, but this is less common in industrial settings. Wood requires different cutting tools and speeds to avoid burning or splintering.

Always consult with your machine shop to ensure they have the right equipment for your specific material needs.

These FAQs should help you make a more informed decision when choosing between CNC lathe and CNC milling for your project.

Next, we’ll conclude with some final thoughts on making the right choice for your machining needs.

Conclusion

At TMC Technologies, we understand that choosing between CNC lathe and CNC milling can be a pivotal decision for your manufacturing process. Each type of machine has its unique strengths and applications, and our goal is to help you make the most informed choice.

CNC lathes are perfect for creating cylindrical parts. They excel in producing items like screws, shafts, and knobs. If your project requires high precision for round shapes, a CNC lathe is likely the best option. On the other hand, CNC mills are versatile machines that can handle more complex shapes. They are ideal for cutting flat surfaces, creating grooves, and making deeper holes. When your design involves intricate details and non-cylindrical shapes, a CNC mill is the way to go.

At TMC Technologies, we offer top-of-the-line CNC machines from industry leaders like HAAS CNC. Our partnership ensures that you get the best equipment for your specific needs. We also provide comprehensive training to help you utilize these machines to their fullest potential.

Material compatibility is another crucial factor. CNC machines can work with a variety of materials, including aluminum, steel, brass, and even some plastics and woods. Understanding the properties of these materials, such as hardness and flexibility, will help you choose the right machine and settings for your project.

In the realm of precision machining, every detail counts. That’s why we are committed to offering only the highest quality CNC components and custom applications tailored to meet your unique needs. Our expertise in CNC machining services is not just about providing equipment; it’s about enabling your business to achieve new levels of precision and efficiency.

Choosing TMC Technologies means opting for a partner who understands the nuances of high precision CNC work. Whether you’re working on intricate metal parts that require the utmost accuracy or looking for the reliability and speed of automated control, our solutions are designed to help you excel.

Explore how our CNC machining services can transform your manufacturing capabilities. Visit our capabilities page to learn more about how we can support your production needs.

In conclusion, making the right choice between CNC lathe and CNC milling is essential for achieving the best results in your manufacturing process. With TMC Technologies by your side, you can be confident in selecting the right machine for your needs, ensuring precision, efficiency, and quality in every project.

Introduction

3 4 5 axis machining is essential in modern manufacturing, allowing for precision and flexibility in creating complex parts. To quickly grasp the differences:

• 3-Axis Machining: Uses X, Y, and Z axes. Ideal for simpler, planar designs.
• 4-Axis Machining: Adds an A-axis (rotation around X-axis). Better for intricate profiles.
• 5-Axis Machining: Uses X, Y, Z, and two rotational axes (B and C). Best for highly complex geometries.

In parts manufacturing, the evolution from 3-axis to 5-axis CNC milling has revolutionized the way we approach complex shapes and high-precision components. With the demands of sectors like aerospace, medical, and automotive, mastering these capabilities is more crucial than ever.

Understanding 3, 4, and 5-Axis Machining

In parts manufacturing, the evolution from 3-axis to 5-axis CNC milling has revolutionized the way we approach complex shapes and high-precision components. With the demands of sectors like aerospace, medical, and automotive, mastering these capabilities is more crucial than ever.

Definitions

3-Axis Machining: This is the most basic form of CNC machining. The cutting tool moves along three axes: X (left to right), Y (front to back), and Z (up and down). It’s great for simple tasks like drilling, threading, and creating planar profiles.

4-Axis Machining: This adds an A-axis, which rotates around the X-axis. This extra axis allows for more complex profiles and can machine four sides of a component in a single setup, saving time and improving precision.

5-Axis Machining: This includes all the capabilities of 4-axis machining but adds another rotational axis, typically the B-axis (around the Y-axis) or C-axis (around the Z-axis). This allows the cutting tool to approach the workpiece from any direction, making it ideal for highly complex geometries.

Basic Concepts

Axis Explanation: The number of axes in CNC machining refers to the directions in which the cutting tool can move. More axes mean more flexibility and precision in creating complex shapes.

• X, Y, Z Axes: These are the linear axes in 3-axis machining. They allow the tool to move left-right, front-back, and up-down.
• A-Axis: This is the rotational axis around the X-axis, introduced in 4-axis machining. It allows the workpiece to be rotated, providing access to different sides without changing the fixture.
• B-Axis: This is the rotational axis around the Y-axis, used in some 5-axis machines.
• C-Axis: This is the rotational axis around the Z-axis, also used in 5-axis machines.

Why More Axes Matter

Precision and Complexity: More axes mean the machine can handle more complex shapes with higher precision. For example, 5-axis machining is essential for creating aerospace parts, medical devices, and other components that require intricate detailing.

Efficiency: Multi-axis machines reduce the need for multiple setups. For instance, a 5-axis machine can work on five sides of a part in a single setup, significantly speeding up the production process.

Cost: While 5-axis machines are more expensive, they can save money in the long run by reducing setup times and increasing precision, which minimizes errors and waste.

Real-World Applications

Aerospace: The aerospace industry often requires parts with very complex geometries and tight tolerances. 5-axis machining is invaluable here.

Medical: Medical devices often have intricate shapes and require high precision. 5-axis machines can produce these parts efficiently.

Automotive: The automotive industry benefits from the speed and precision of multi-axis machining for parts like engine components and custom parts.

Understanding the basics of 3, 4, and 5-axis machining helps you choose the right machine for your needs. Whether you’re drilling simple holes or creating complex aerospace components, knowing the capabilities of each type of machine is crucial.

Next, we’ll delve into the specific capabilities of 3-axis machining and how it fits into the broader picture of CNC technology.

The Capabilities of 3-Axis Machining

3-axis machining is the most straightforward form of CNC machining. It involves the movement of the cutting tool in three linear directions: X, Y, and Z. Despite its simplicity, 3-axis machining is highly versatile and can handle a variety of tasks.

2D and 2.5D Geometry

3-axis machines excel at creating 2D and 2.5D geometry. These are flat shapes and simple contoured surfaces. For instance, when you need to mill basic shapes like squares, rectangles, or circles, a 3-axis machine does the job efficiently. It can also handle slight variations in depth, which is what 2.5D geometry refers to.

Planar Profiles

Planar profiles are another area where 3-axis machines shine. These are flat surfaces that need to be precise and smooth. Think of metal panels or enclosures that require a perfect finish. With the right setup, a 3-axis machine can produce these profiles with high accuracy.

Drilling and Threading

Drilling and threading are common tasks in CNC machining. A 3-axis machine can easily drill holes and thread them for screws or bolts. This is useful in creating parts that need to be assembled later. Whether you’re working on a metal plate or a plastic component, drilling and threading are straightforward with a 3-axis machine.

Undercut Features

Creating undercut features—areas where the cutting tool must reach under an overhanging part—is possible but more challenging with 3-axis machining. It requires careful planning and sometimes creative setups. While not impossible, it’s one of the limitations where 4 or 5-axis machines might be more efficient.

Limitations of 3-Axis Machining

While versatile, 3-axis machining has its limitations:

• Single-Side Machining: You can only machine one side of the part at a time. For complex parts, this means multiple setups, which increases the chance of errors.
• Complex Geometries: Creating intricate 3D shapes is difficult and often requires multiple setups, which can be time-consuming and less precise.
• Lower Precision: Each setup introduces a chance for small errors, affecting the overall precision of the final part.

DATRON 3-Axis Machines

When it comes to 3-axis machines, brands like DATRON stand out. DATRON’s 3-axis machines are equipped with advanced features like integrated cameras and touch probes. These tools make setup easier and more precise, reducing the room for error. Their user-friendly interface also helps operators perform complex setups more efficiently.

In summary, 3-axis machining is ideal for simpler tasks and lower-budget projects. It’s perfect for machining 2D and 2.5D geometries, planar profiles, and performing basic drilling and threading. However, for more complex parts and higher precision, you might need to look into 4 or 5-axis machining.

Next, we’ll explore the advancements in 4-axis machining and how it can handle more complex profiles and reduce setup times.

Advancements in 4-Axis Machining

4-axis machining introduces an additional axis of rotation, known as the A-axis, which rotates around the X-axis. This added capability significantly enhances the machine’s ability to create more complex geometries and profiles.

A-Axis Rotation and Complex Profiles

The A-axis rotation allows the cutting tool to approach the workpiece from various angles, enabling the machining of intricate shapes and curves that are impossible with 3-axis machines. For example, cam lobes—the elliptical components found in engines—require precise and continuous profiles that can only be achieved with 4-axis machining.

Indexing vs. Continuous Machining

There are two primary types of 4-axis machining: indexing and continuous.

• Indexing: In this method, the A-axis rotates the workpiece to a specific angle and locks it in place while the machine cuts. This technique ensures high accuracy because the machine stops moving while cutting. It’s ideal for parts like gears, where each segment requires precise machining.

• Continuous Machining: Here, the machine can cut material while the A-axis rotates simultaneously. This method is perfect for creating complex shapes and smooth surfaces, such as turbine blades or camshafts. Continuous machining allows for the creation of intricate and detailed geometries that are challenging with just three axes.

DATRON A-Axis

Many 3-axis machines can be upgraded to 4-axis capabilities with the addition of rotary axis accessories. For instance, DATRON offers a range of accessories that can turn their 3-axis machines into 4-axis powerhouses. The DATRON neo can achieve 4-axis milling with a rotary axis accessory, making it a versatile option for various machining needs.

Fixture Savings and Precision

One of the significant advantages of 4-axis machining is the reduction in the number of fixtures required. In traditional 3-axis machining, multiple fixtures and setups are often needed, each adding to the cost and time. By utilizing the A-axis, only one fixture might be necessary, as shown in a case where a part required two unique fixtures costing £1000 and £800 for 3-axis machining. With 4-axis machining, only one £1000 fixture was needed, eliminating the need for change-overs and reducing the risk of human error. This setup also allowed for tighter tolerances between features on different sides of the part, enhancing overall precision.

In conclusion, 4-axis machining offers significant advancements over 3-axis machining. The additional A-axis rotation enables the creation of complex profiles and reduces the need for multiple fixtures, saving both time and money. Whether you need to machine cam lobes, gears, or turbine blades, 4-axis machining provides the precision and efficiency required for high-quality parts.

Next, we’ll delve into the flexibility of 5-axis machining and how it can handle even more complex shapes and surfaces.

Exploring the Flexibility of 5-Axis Machining

5-axis machining opens up a world of possibilities for creating complex 3D shapes and surfaces. This advanced machining technique allows for the simultaneous movement of five different axes, enhancing precision and flexibility.

3+2 Machines

3+2 machining is a type of 5-axis machining where the tool positions itself using three linear axes (X, Y, Z) and two rotational axes (A and C or B and C). However, the rotational axes do not move while cutting. This method is excellent for accessing hard-to-reach areas and creating compound angles. It’s less complex than full simultaneous 5-axis machining but still offers significant advantages over traditional 3-axis setups.

Continuous 5-Axis

Continuous 5-axis machining takes it a step further by allowing all five axes to move simultaneously. This method is ideal for producing highly intricate designs and complex curved surfaces. It reduces machining time and increases accuracy, making it perfect for industries like aerospace and medical device manufacturing.

A and C Axis, B and C Axis

In 5-axis machines, the additional two rotational axes can be either A and C or B and C.

• The A-axis rotates around the X-axis.
• The B-axis rotates around the Y-axis.
• The C-axis rotates around the Z-axis.

These rotations provide the tool with the ability to approach the workpiece from virtually any angle, enabling the creation of intricate geometries.

Simultaneous Machining

Simultaneous 5-axis machining allows for the concurrent movement of all five axes. This capability is crucial for creating complex 3D shapes and surfaces that would be impossible with fewer axes. It also improves surface finish and reduces the need for multiple setups, saving time and reducing errors.

DATRON C5

The DATRON C5 is a prime example of a 5-axis machine designed for micromachining small, precision parts. It excels in producing intricate components with high accuracy, making it ideal for industries that require meticulous detail, such as medical devices and aerospace components.

In summary, 5-axis machining offers unparalleled flexibility and precision. Whether using 3+2 machines for simpler setups or continuous 5-axis for complex shapes, this technology significantly enhances manufacturing capabilities. Next, we’ll compare the costs, complexity, and other factors between 3, 4, and 5-axis machining to help you choose the right solution for your needs.

Comparing 3, 4, and 5-Axis Machining

When deciding between 3, 4, and 5-axis machining, several factors come into play. Let’s break them down:

Cost

3-axis machines are the most affordable option. They have lower initial costs and maintenance expenses. Ideal for small shops with limited budgets.

4-axis machines are more expensive but can save costs in high-volume production by reducing setups.

5-axis machines are the priciest, often costing over $500,000. However, they can save money in the long run by reducing machine time and setups.

Complexity

3-axis machines are simple to operate and maintain. They have fewer moving parts, which means less can go wrong.

4-axis machines add complexity with the A-axis rotation, requiring more skill to operate but offering more capabilities.

5-axis machines are the most complex. They have more moving parts and require advanced knowledge to operate and maintain.

Programming

3-axis machines have straightforward programming. Simple changes can be made easily.

4-axis machines require more advanced programming to handle the additional axis, but this can be managed with indexing or continuous machining.

5-axis machines need highly skilled programmers. The programming is intricate due to the simultaneous movement of multiple axes.

Time Efficiency

3-axis machines are slower because they often require multiple setups.

4-axis machines improve efficiency by reducing the number of setups needed, especially for multi-sided machining.

5-axis machines are the fastest. They can machine complex parts in a single setup, saving significant time.

Operator Training

3-axis machines are easy to learn and don’t require complex training.

4-axis machines need operators to understand the additional A-axis, which involves more training.

5-axis machines demand highly skilled operators. Continuous training is essential to keep up with the machine’s capabilities.

Customization

3-axis machines are limited in customization, suitable for simple parts.

4-axis machines offer more customization, allowing for angled features and curved surfaces.

5-axis machines provide the highest level of customization. They can create intricate 3D shapes and complex geometries.

Material Management

3-axis machines manage materials efficiently for simple parts but struggle with complex geometries.

4-axis machines handle materials better for angled and multi-sided features.

5-axis machines excel in material management, reducing waste and optimizing material use for complex parts.

Tool Breakage

3-axis machines have a higher risk of tool breakage due to multiple setups and realignments.

4-axis machines reduce this risk by minimizing the need for multiple setups.

5-axis machines have the least risk of tool breakage. The continuous movement and single setup reduce stress on tools.

Secondary Finishing

3-axis machines often require secondary finishing due to lower precision and multiple setups.

4-axis machines reduce the need for secondary finishing by achieving higher precision in fewer setups.

5-axis machines usually eliminate the need for secondary finishing. They achieve high precision and smooth finishes in a single setup.

Error Accumulation

3-axis machines have a higher chance of error accumulation due to multiple setups and realignments.

4-axis machines reduce error accumulation by minimizing setups.

5-axis machines have the least error accumulation. The single setup and continuous movement ensure high accuracy.

Understanding these factors can help you choose the right CNC machining solution for your needs. Next, we’ll answer some frequently asked questions about 3, 4, and 5-axis machining.

Frequently Asked Questions about 3, 4, and 5-Axis Machining

What is the main advantage of 5-axis machining over 3-axis?

The main advantage of 5-axis machining over 3-axis machining is its ability to handle complex geometries with higher precision.

In 5-axis machining, the cutting tool can move along five different axes simultaneously. This allows it to approach the workpiece from any direction, effectively machining five sides of a part in a single setup. This reduces the need for multiple setups, which in turn minimizes error accumulation and increases accuracy.

Moreover, 5-axis machines can create intricate features like cross-drilling and angled cuts that would be impossible or very challenging with a 3-axis machine. For industries requiring ultra-high precision, such as aerospace and medical, 5-axis machining is often the only viable option.

How does 4-axis machining improve upon 3-axis capabilities?

4-axis machining adds an additional axis of rotation to the capabilities of a 3-axis machine. This is typically the A-axis, which allows the workpiece to rotate around the X-axis.

This extra rotation enables 4-axis machines to machine four sides of a part in a single setup, significantly reducing the need for reorienting the workpiece. This not only saves time but also reduces potential errors from multiple setups.

Furthermore, 4-axis machining can efficiently handle more complex profiles and features like arcs and helixes. It’s particularly useful for parts that require machining on multiple sides, such as those with side holes or cylindrical shapes.

Can 3-axis machines be upgraded to perform 4 or 5-axis machining?

Upgrading a 3-axis machine to perform 4 or 5-axis machining is technically possible but often not practical.

Adding a 4th axis typically involves integrating a rotary table, which can be a relatively straightforward upgrade. However, this still requires compatible software and control systems to manage the additional axis.

Upgrading to 5-axis is much more complex and costly. It involves significant modifications, including adding two rotational axes, upgrading control systems, and ensuring the machine’s structural integrity can handle the additional movements. This often makes it more economical to invest in a new 4 or 5-axis machine rather than upgrading an existing 3-axis machine.

In summary, while upgrades are possible, they come with their own set of challenges and costs. For most applications, it is more efficient to choose a machine that already meets the required specifications.

Conclusion

Choosing the Right Axis for Your Project

Selecting the right CNC machine for your project can feel overwhelming, but it doesn’t have to be. Here’s a simple breakdown:

• 3-Axis Machining: Best for simple geometries and low-budget projects. These machines are easy to use, require minimal training, and are ideal for low-volume production. If your parts don’t need complex features, a 3-axis machine will do the job efficiently.

• 4-Axis Machining: If your project involves curved surfaces or multi-sided features, a 4-axis machine is a great choice. It offers higher precision due to fewer setups and is more cost-effective for larger production volumes. This is your go-to for projects needing higher tolerances without breaking the bank.

• 5-Axis Machining: For highly complex parts with intricate details, nothing beats a 5-axis machine. It’s perfect for industries like aerospace and medical where precision is non-negotiable. The ability to machine complex shapes in a single setup saves time and ensures the highest level of accuracy.

TMC Technologies: Your Partner in CNC Machining

At TMC Technologies, we understand that every project is unique. Our expertise in 3, 4, and 5-axis machining allows us to provide tailored solutions that meet your specific needs. From simple parts to complex geometries, we have the right tools and the know-how to deliver top-notch results.

Our team of experts is always ready to help you navigate the complexities of CNC machining. Whether you need advice on the best machine for your project or support in bringing manufacturing in-house, we’re here to assist.

Explore our capabilities and see how we can help you achieve your manufacturing goals. Visit our Capabilities Overview page to learn more.

Get in touch with us today and let’s make your project a success!

By understanding the strengths and limitations of 3, 4, and 5-axis machining, you can make an informed decision that aligns with your project’s requirements and budget. At TMC Technologies, we’re committed to providing you with the best CNC machining solutions, ensuring precision, efficiency, and quality in every part we produce.

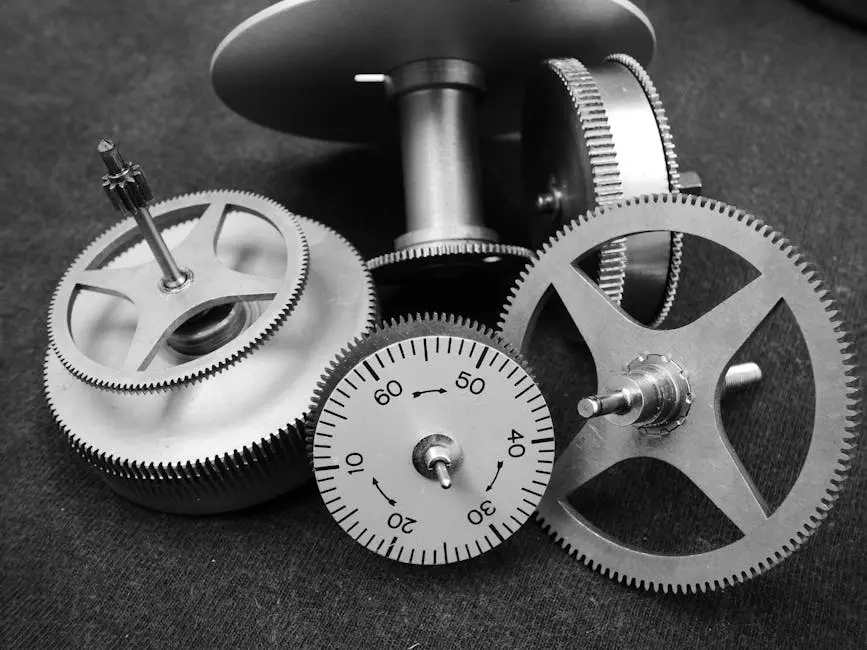

Introduction

When searching for a CNC precision components manufacturer, you need a partner who can deliver high-quality, precise parts tailored to your needs. Whether you’re in the automotive, medical, aerospace, or electronics sectors, the precision and reliability of your components are vital. Here’s a quick list of top CNC precision components manufacturers to help you find the best:

Top CNC Precision Components Manufacturers:
– Yamazaki Mazak (Japan)
– Trumpf (Germany)
– DMG MORI (Germany + Japan)
– MAG (USA)
– Haas (USA)
– Hardinge (USA)
– AMADA (Japan)
– Okuma (Japan)

The manufacturing world relies heavily on CNC (Computer Numerical Control) precision machining to create complex and accurate components. This technology enables the production of high-precision parts with minimal human error, ensuring consistent quality and tight tolerances. From intricate medical devices to robust automotive parts, the precision components produced by CNC machines form the backbone of modern industrial applications.

In the current landscape, finding a reliable CNC precision components manufacturer is crucial. Manufacturers must meet stringent standards, utilize the latest CNC technology, and offer extensive services to cover every aspect of production.

By understanding the significance of CNC precision machining and knowing the top players in the industry, you are well-equipped to make an informed decision for your component production needs.

Top CNC Precision Components Manufacturers

Yamazaki Mazak (Japan)

Yamazaki Mazak is a global leader in CNC precision components manufacturing. Known for their high-quality and advanced technology, Mazak’s machines cater to various industries, from aerospace to medical equipment. Their Mazak INTEGREX series is renowned for its versatility and precision, making it a preferred choice for complex machining needs. With a significant manufacturing presence in the USA, Mazak combines innovation with reliability to deliver top-notch CNC solutions.

Trumpf (Germany)

Trumpf stands out for its innovative solutions and precision engineering. This German manufacturer is highly regarded for its reliable and high-quality fabrication equipment, especially in the sheet metal processing sector. Trumpf’s machines are known for their precision and reliability, which are crucial for industries requiring exacting standards.

DMG MORI (Germany + Japan)

DMG MORI is a powerhouse in the CNC machining industry, offering cutting-edge and versatile machines that deliver high performance. Their DMG Mori DMU 50 5-Axis Mill and DMG Mori NLX 2000 Multi Spindle Lathe are ideal for industries such as aerospace and automotive, where precision is paramount. DMG MORI’s global presence and commitment to innovation make them a top choice for CNC precision components manufacturing.

MAG (USA)

MAG is recognized for its robust machines and precision parts. With experience in the industry, MAG’s equipment is designed to handle large, complex parts while maintaining precise tolerances. Their innovative machine tools serve a variety of industries, including automotive and aerospace, ensuring high-quality production and reliability.

Haas (USA)

Haas Automation is one of the largest builders of CNC machines in North America. Known for their affordable and user-friendly machines, Haas offers high precision and reliability. The Haas UMC 750 5-Axis Mill and Haas VF2 Mills are popular for their efficiency and precision, making them suitable for a variety of machining tasks.

Hardinge (USA)

Hardinge is synonymous with ultra-precision. Their durable and versatile machines, such as the Hardinge Super Precision Lathe, are crucial for industries where meticulous detail and exceptional surface finishes are required. Hardinge is especially valued in the medical and aerospace sectors for their precision engineering.

AMADA (Japan)

AMADA specializes in advanced technology and high precision in metal cutting, forming, shearing, and punching equipment. Their laser cutting machines are highly regarded for providing high-speed and precise cuts, particularly in sheet metal fabrication. AMADA’s reliability and innovation make them a top choice for CNC precision components manufacturing.

Okuma (Japan)

Okuma is famous for its innovative and high-quality CNC lathes and turning centers. Their machines, such as the Okuma Genos L series, are praised for their robustness and ability to produce high-precision parts efficiently. Okuma’s commitment to precision and advanced technology ensures they remain a leader in the CNC machining industry.

By understanding the capabilities and strengths of these top CNC precision components manufacturers, you can make an informed decision for your production needs. Each of these companies brings unique expertise and technology to the table, ensuring high standards and reliable performance in CNC machining.

Next, let’s explore the core principles of CNC precision engineering and how these machines operate to deliver exceptional results.

What is CNC in Precision Engineering?

CNC in precision engineering stands for Computer Numerical Control. It is a process that uses computers to control machine tools, ensuring high precision and accuracy in manufacturing. This method is crucial for creating intricate parts that meet exact specifications.

CNC Process

The CNC process starts with a digital blueprint. Engineers use computer-aided design (CAD) software to create detailed designs of the parts. These designs are then converted into instructions using computer-aided manufacturing (CAM) software. The instructions, known as G-code, guide the CNC machines on how to move, cut, and shape the material.

Machinery

CNC machinery includes various types of tools such as:

• Milling Machines: These machines use rotary cutters to remove material from a workpiece. They are ideal for flat materials or those with irregular surfaces.
• Lathes: Lathes rotate the workpiece against cutting tools to create cylindrical parts. They are known for their speed and precision.
• Grinders: Used for finishing surfaces, grinders provide a smooth and precise finish.
• Laser Cutters: These use high-precision lasers to cut materials, offering exceptional detail.

Operations

CNC operations are highly automated. Once the machine is programmed, it can run multiple cycles without human intervention. This automation ensures repeatability, meaning each part produced is identical to the last. This is vital in industries like aerospace and medical, where uniformity is crucial.

An example of CNC precision engineering in action is Cambridge Precision Ltd (CPL). They use CNC machines to create complex shapes in a single setup, ensuring optimum quality control. Their innovative use of cobots (collaborative robots) with five-axis CNC machines has set a new standard in the industry. According to Nick Raven, CPL’s operations manager, this technology has revolutionized their operations, allowing them to handle more complex jobs and ensure consistent quality.

By understanding the CNC process, machinery, and operations, you can appreciate the precision and efficiency that CNC brings to manufacturing. This knowledge is essential for selecting the right CNC precision components manufacturer for your needs.

Next, we’ll dive into how CNC machines can be used for precision manufacturing, highlighting their ability to create complex parts with precise measurements.

How CNC Machines Can Be Used for Precision Manufacturing

CNC machines are game-changers in precision manufacturing. They can create complex parts with exact measurements, ensuring high productivity and consistent quality. Here’s how:

Creating Complex Parts

CNC machines excel at making intricate components that would be nearly impossible to produce manually. For example, in the aerospace industry, CNC machines are used to craft engine parts with tight tolerances and complex geometries. This capability is crucial for ensuring the safety and performance of aircraft.

Ensuring Precise Measurements

One of the standout features of CNC machines is their ability to operate with extremely tight tolerances. These machines can achieve tolerances as precise as ±0.0001 inches. This level of precision is essential for industries like medical device manufacturing, where even a tiny deviation can have significant consequences.

For instance, CNC machining is used to produce surgical tools and implants that must fit perfectly and function reliably. This high level of accuracy ensures that each part meets stringent quality standards.

Boosting Productivity

CNC machines are also a boon for productivity. Once programmed, they can run 24/7 with minimal supervision. This continuous operation reduces downtime and speeds up production times.

For example, in the automotive industry, CNC machines are used to produce engine components, gears, and other critical parts. The ability to switch between different part designs quickly and efficiently makes CNC machines ideal for high-volume production runs.

Moreover, CNC machines can perform multiple operations like milling, turning, and drilling in a single setup, further enhancing productivity.

In summary, CNC machines are invaluable for precision manufacturing. They allow the creation of complex parts with exact measurements and significantly boost productivity. This makes them essential tools for any CNC precision components manufacturer aiming to deliver high-quality products.

Next, we’ll explore the key capabilities of CNC precision components manufacturers, including their machining services and the materials they use.

CNC Precision Components Manufacturer: Key Capabilities

Precision CNC Machining Services

Precision CNC machining services are the backbone of any CNC precision components manufacturer. These services utilize advanced technology to create parts with extreme accuracy. At BDE Manufacturing Technologies, for example, the facility is equipped with 4-axis machining centers, CNC lathes, and multi-tasking turning centers. This allows for the production of complex parts with tight tolerances, often as precise as ±0.0002″.

These advanced machines can perform various special processes, such as deburring, honing, hard turning, and OD grinding. By integrating these capabilities, manufacturers can serve a wide range of industries with high-quality components.

Materials Used in Precision Machining

The choice of material is crucial for the performance of precision machined parts. Different materials offer unique properties that make them suitable for specific applications. Here are some commonly used materials:

• Stainless Steel: Varieties like 303, 304, 316, 17-4 PH, and 15-5 are popular for their corrosion resistance and strength.
• Tool Steel: Grades such as D2, A2, and S7 are known for their durability and hardness.
• Aluminum Alloys: Alloys like 5052, 6061-T6, and 7075-T6 are lightweight yet strong, making them ideal for aerospace and automotive applications.
• Brass: CDA 360/385 is often used for its excellent machinability and resistance to corrosion.
• Nickel: Alloys like CDA 798 NM2 are used for their high resistance to heat and corrosion.

Other materials like beryllium copper, titanium, and high-performance plastics like PEEK and Delrin are also used, depending on the specific requirements of the part.

Industries Served by CNC Precision Components Manufacturers

CNC precision components manufacturers serve a wide array of industries, each with unique demands for precision and reliability. Some of the key industries include:

• Medical and Dental: High precision is critical for surgical instruments, implants, and diagnostic equipment. For example, precision-machined hip implants must fit perfectly to ensure patient safety and comfort.
• Automotive: Components like gears, engine parts, and braking systems require exact tolerances to ensure vehicle safety and performance.
• Aerospace: From the smallest screws to intricate engine parts, aerospace components must withstand extreme conditions and adhere to the highest standards of precision.
• Electronics and Instrumentation: Precision parts are essential for devices like smartphones, computers, and measurement instruments. These components often require milling and turning services to achieve the necessary precision.
• Hydraulic Equipment: Parts like valves and cylinders need to be machined with high accuracy to function correctly under high pressure.

These industries rely on the expertise of CNC precision components manufacturers to deliver parts that meet stringent quality standards and perform reliably in critical applications.

Frequently Asked Questions about CNC Precision Components Manufacturers

What is CNC precision engineering?

CNC precision engineering involves using Computer Numerical Control (CNC) machines to create parts with extremely tight tolerances. These machines follow detailed CAD or CAM blueprints to cut, drill, and shape raw materials into precise components. The process is automated, reducing human error and ensuring high repeatability. CNC precision engineering is crucial in industries like aerospace, medical, and electronics, where even the smallest deviation can lead to product failure.

How do CNC machines ensure precision in manufacturing?

CNC machines ensure precision through several key factors:

• Advanced Software: CNC machines use sophisticated software to interpret CAD designs and generate precise cutting paths. This ensures that every cut is made exactly as planned.

• High-Quality Tooling: The quality of the cutting tools used in CNC machines plays a significant role in achieving precision. Tools must be sharp, durable, and well-maintained.

• Tight Tolerances: CNC machines can achieve tolerances as tight as +/- 0.001 inches. This level of precision is essential for creating complex parts that fit together perfectly.

• Automated Control: Automation minimizes human error and ensures consistent quality across large production runs. This is particularly important for industries requiring mass production of identical parts.

• Multi-Axis Machining: Machines like 4-axis and 5-axis CNC mills can create complex geometries and intricate designs that would be impossible with manual machining.

What materials are commonly used in CNC precision machining?

CNC precision machining can work with a wide range of materials, each chosen for its specific properties and suitability for the intended application. Here are some commonly used materials:

• Stainless Steel: Varieties like 303, 304, and 316 are popular for their corrosion resistance and strength. Precipitation hardening stainless steels like 17-4 PH are also used for high-strength applications.

• Tool Steel: Known for its durability and hardness, tool steel variants such as D2, A2, and S7 are often used for making tools and dies.

• Aluminum Alloys: Lightweight and easy to machine, aluminum alloys like 6061 and 7075-T6 are commonly used in aerospace and automotive industries.

• Brass: Brass CDA 360/385 is used for its excellent machinability and resistance to corrosion, making it ideal for fittings and decorative parts.

• Nickel: Nickel alloys like CDA 798 NM2 are used for their high strength and corrosion resistance, suitable for harsh environments.

• Other Materials: CNC machining can also work with materials like beryllium copper, Delrin, PEEK, and titanium, each offering unique properties for specialized applications.

By understanding the capabilities and materials used in CNC precision machining, you can better appreciate the expertise required to produce high-quality components for various industries.

Conclusion

When it comes to CNC precision components manufacturers, TMC Technologies stands out as a leader in the industry. We combine over 40 years of experience with cutting-edge technology to deliver high-quality CNC components that meet the most stringent requirements.

Why Choose TMC Technologies?

1. High-Quality CNC Components

At TMC Technologies, we are committed to producing components that meet the highest standards of precision and quality. Our advanced CNC technology allows us to manufacture parts with unmatched accuracy and performance. Each component undergoes rigorous quality checks to ensure it meets or exceeds your specifications.

2. Comprehensive Machining Services

We offer a wide range of additional machining services to meet your diverse needs. From 4-axis machining and CNC lathes to multi-tasking turning centers, our state-of-the-art equipment enables us to handle complex machining processes with ease. We also provide heat and surface treatment services, making us a one-stop solution for all your precision machining needs.

3. Expertise Across Industries

Our extensive experience allows us to serve various industries, including medical, automotive, aerospace, electronics, and instrumentation. We understand the unique requirements of each sector and tailor our solutions to meet those needs effectively.

4. Custom Solutions

Every project has unique challenges, and we excel in developing custom solutions tailored to meet your specific requirements. Our in-house tool design capabilities and the latest CAD/CAM technology enable us to create tools that enhance the manufacturing process, ensuring superior quality and reduced production time.

5. Exceptional Customer Support

We prioritize your success and satisfaction. Our team provides detailed consultations, ongoing communication about project status, and quick responses to any queries or concerns. This customer-focused approach sets us apart and ensures a seamless experience from design to delivery.

Partner with TMC Technologies

Choosing TMC Technologies means opting for a precision machine shop that values quality, innovation, and customer satisfaction above all. Our commitment to exceeding industry standards and providing comprehensive services makes us the ideal partner for your next project.

Visit our CNC Machining Services page to learn more about how we can assist with your specific machining requirements. Let us be part of your next project and experience the difference that precision, quality, and a customer-focused approach can make.

By understanding the capabilities and materials used in CNC precision machining, you can better appreciate the expertise required to produce high-quality components for various industries.

Introduction

CNC machining prototyping is revolutionizing the way we bring new products to life. By combining the speed of rapid prototyping with the precision of CNC machining, this approach ensures that your prototype is not only quickly produced but also highly accurate and ready for real-world testing.

When searching for efficient prototyping solutions, here’s why CNC machining stands out:

• Precision: Delivers dimensionally accurate and highly detailed parts.
• Speed: Produces prototypes swiftly, typically within a few days.
• Material Versatility: Works with a variety of materials including metals and plastics.
• Cost-Effectiveness: Reduces the need for costly tooling and setup.
• Repeatability: Ensures consistent quality across multiple batches.

Rapid prototyping and CNC machining are key topics for anyone aiming to innovate in product development. This process dramatically cuts down the time and expense traditionally associated with bringing a new idea to fruition. CNC machining, in particular, offers the precision necessary for functional prototypes that closely resemble the final product.

To give you a quick overview, CNC machining prototyping uses advanced digital manufacturing techniques to produce parts that are high-quality, reliable, and suited for a wide range of industries—from automotive to aerospace. Whether it’s for developing functional prototypes, creating jigs and fixtures, or producing components in low volumes, CNC machining is the method of choice.

Why Choose CNC Machining for Prototyping

When it comes to rapid prototyping, CNC machining stands out for several compelling reasons. Let’s look at why it’s the go-to method for bringing designs to life quickly and accurately.

Precision

One of the biggest advantages of CNC machining is its precision. CNC machines can achieve tolerances as tight as ±0.01 mm. This level of accuracy is crucial for industries that require high precision, such as aerospace and medical devices. For example, a medical device company might need parts that fit perfectly and function flawlessly. Even a minor deviation can lead to failure, and CNC machining ensures that each part meets exact specifications.

Speed

Speed is another key factor. CNC machining can turn raw materials into finished parts in minutes. Using modern CAD/CAM software, designs can be quickly translated into G-code cutting programs. This rapid setup and processing time mean you can get your prototypes faster, allowing for quicker iterations and faster time to market.

For instance, a company like WayKen can create a 3D CAD model and have a prototype ready in just a few hours. This speed is invaluable for product development cycles that demand quick turnarounds.

Material Versatility

CNC machines can work with a wide range of materials, from metals like aluminum and stainless steel to plastics like ABS and nylon. This material versatility allows you to test different materials for your prototype without changing the design. For example, you can create the same part in both aluminum and plastic to compare their mechanical properties.

Cost-Effectiveness

While CNC machining may have higher upfront costs compared to methods like 3D printing, it becomes cost-effective in the long run. The precision and repeatability of CNC machining reduce material waste and lower the chances of errors, saving you money on reworks and scrap materials.

Moreover, CNC machines can produce multiple parts simultaneously, further reducing costs. For example, TMC Technologies leverages this capability to offer cost-effective solutions for small to medium production runs.

Repeatability

Repeatability is another strong suit of CNC machining. Once a part is programmed, the machine can produce identical parts with the same high level of precision, again and again. This is particularly useful for industries that require consistency, such as automotive manufacturing. Imagine needing 100 identical gears for a car’s transmission system. With CNC machining, you can be confident that each gear will meet the exact specifications.

In summary, the combination of precision, speed, material versatility, cost-effectiveness, and repeatability makes CNC machining an excellent choice for rapid prototyping. Whether you’re developing a new product or refining an existing one, CNC machining ensures that your prototypes are accurate, reliable, and ready for the next steps in production.

Next, we’ll dive into the key techniques used in CNC prototyping, including milling, turning, and multi-axis machining.

Key CNC Prototyping Techniques

Milling

Milling is one of the most common techniques in CNC machining prototyping. It involves using a milling machine to remove material from a workpiece to create a prototype. This subtractive process uses multipoint cutting tools, which make sharp cuts of varying shapes and lengths on the workpiece as it rotates.

There are two main types of milling: 3-axis and 5-axis.

• 3-axis milling: This is the most straightforward form of milling, where the cutting tool moves along the X, Y, and Z axes. It’s ideal for parts with simple geometries.
• 5-axis milling: This advanced form allows the cutting tool to move along the X, Y, Z axes, and also rotate on the A and B axes. It’s perfect for complex parts with intricate geometries.

Milling is highly versatile and can be used to create prototypes with precise dimensions and intricate details.

Turning

Turning is another essential technique for CNC prototyping. This process uses a lathe to create prototypes, especially those with cylindrical features.

In turning, the workpiece rotates while a single-point cutting tool remains stationary. This method is ideal for producing detailed prototypes and final products with cylindrical shapes. It’s commonly used for creating linear features on the exterior of a part, as well as slots, threads, and tapers on its interior edges.

Turning operations can be performed on various types of lathes, but CNC lathes provide the highest level of precision and efficiency.

Multi-axis Machining

Multi-axis machining takes CNC prototyping to a new level of complexity and precision. While traditional 3-axis machines are limited in their movement, multi-axis machines can move the cutting tool or the workpiece in more directions.

• 4-axis machining: Adds rotation around the X-axis, allowing for more complex cuts and reducing the need for multiple setups.
• 5-axis machining: Adds rotation around the Y-axis, enabling the creation of even more intricate parts with fewer setups.
• 9-axis machining: Provides the highest level of precision and complexity, allowing for simultaneous movement along multiple axes. This is ideal for parts with very complex geometries.

Multi-axis machining significantly reduces setup time and improves accuracy by allowing the workpiece to be machined from almost any direction.

Electrical Discharge Machining (EDM)

Electrical Discharge Machining (EDM), also known as spark machining, is a unique technique that uses electrical discharges to shape parts. This method is particularly useful for machining hard materials that are difficult to cut with traditional methods.

EDM is perfect for creating prototypes with delicate geometries and complex shapes. It works by eroding material from the workpiece using electrical sparks, allowing for high precision and fine details.

Next, we’ll explore the types of materials best suited for CNC prototyping, including various metals and plastics.

Selecting Materials for CNC Prototyping

When it comes to CNC machining prototyping, choosing the right material is crucial. The material you select will affect everything from the durability and function of the prototype to the ease and cost of machining. Let’s break down the common materials used in CNC prototyping, focusing on metals and plastics.

Metals

Metals are a popular choice for CNC prototyping due to their strength, durability, and versatility. Here are some commonly used metals:

• Aluminum: Lightweight yet strong, aluminum is perfect for parts that need to be both sturdy and easy to handle. It’s also highly machinable, which makes it a favorite for prototypes. Aluminum 7075, for example, is often used in aerospace applications for its high tensile strength.

• Brass: Known for its excellent machinability and good corrosion resistance, brass is ideal for parts that require precise detailing.

• Copper: Excellent at conducting electricity and heat, copper is used in prototypes that need these specific properties.

• Stainless Steel: This metal offers great corrosion resistance and strength. It’s used for parts that need to withstand harsh environments.

• Titanium: Renowned for its high strength-to-weight ratio and excellent corrosion resistance, titanium is often used in aerospace and medical prototypes. Despite being harder to machine, its benefits make it worth the effort.

Plastics

Plastics are another versatile option for CNC prototyping. They are lightweight, easy to machine, and come in a variety of types with different properties:

• ABS (Acrylonitrile Butadiene Styrene): Known for its toughness and impact resistance, ABS is commonly used for functional prototypes. It’s also easy to machine, making it a popular choice.

• Nylon: This plastic is strong, wear-resistant, and has good chemical resistance. It’s often used in mechanical parts like gears and bearings.

• PC (Polycarbonate): Offering high impact resistance and transparency, polycarbonate is used in prototypes that require clear, tough plastic.

• PMMA (Polymethyl Methacrylate): Also known as acrylic, PMMA is a lightweight, shatter-resistant alternative to glass. It’s used in prototypes that need to be clear and durable.

Each material has its own set of advantages, making it suitable for different applications. For example, aluminum and stainless steel are excellent for aerospace components due to their strength and lightweight properties, while ABS and nylon are great for mechanical parts that need to withstand wear and tear.

Next, we’ll dive into the various surface finishes and post-processing techniques that can enhance the appearance and performance of your CNC prototypes.

Surface Finishes and Post-Processing

Surface finishes and post-processing are crucial steps in CNC machining prototyping. They not only enhance the aesthetics of the parts but also improve their durability and performance. Here, we’ll explore some common techniques: anodizing, bead blast, chromate plating, brushed, and black oxide finishes.

Anodizing

Anodizing is a popular surface finish for metal parts, especially aluminum. This process involves creating a protective oxide layer on the surface of the part by immersing it in an electrolyte solution. There are two main types of anodizing used in CNC prototyping:

• MIL-A-8625 Type II: This type forms a decorative layer and is available in clear (Class 1) and black (Class 2) finishes. It’s great for parts that need a good appearance but aren’t exposed to harsh environments.

• MIL-A-8625 Type III: Also known as hard anodizing, this type offers a thicker, more protective layer. It’s suitable for parts that require high wear resistance and durability.

Bead Blast

Bead blasting is a technique used to achieve a uniform, matte surface finish. It involves blasting the part with small beads at high pressure. This method is suitable for both metals and plastics and is often used to prepare surfaces for further coating or painting.

• Metals: Bead blasting can remove surface imperfections and create a smooth, even texture.

• Plastics: It can help to reduce surface gloss and prepare plastic parts for painting.

Chromate Plating

Chromate plating, also known as chromate conversion coating, is used to enhance corrosion resistance and paint adhesion on metal parts. It’s particularly useful for aluminum and magnesium alloys.

• MIL-DTL-5541 Type II: This specification covers chromate conversion coatings for aluminum and aluminum alloys, providing a clear finish (Class 3) that is less toxic and environmentally friendly.

Brushed

A brushed finish is created by sanding the surface of the metal in one direction, giving it a distinctive linear texture. This finish is often used for aesthetic purposes, providing a sleek and modern look. It’s commonly applied to stainless steel and aluminum parts.

Black Oxide

Black oxide is a conversion coating for ferrous materials, stainless steel, copper, and its alloys. It provides a black finish that enhances corrosion resistance and reduces light reflection.

• Metals: This finish is commonly used on steel parts to improve their appearance and resistance to wear and corrosion.

Next, we’ll discuss the limitations and considerations in CNC prototyping, including geometrical restrictions, technical expertise, and a comparison with 3D printing.

Limitations and Considerations in CNC Prototyping

When it comes to CNC machining prototyping, there are some limitations and considerations you should be aware of. Let’s dive into a few key points.

Geometrical Restrictions

One major limitation of CNC prototyping is its struggle with internal geometries. CNC machines are fantastic at working on the outside of a part, but they can’t easily reach inside to create complex internal features. For instance, if you need a prototype with intricate internal channels or cavities, CNC might not be your best bet.

Example: Imagine trying to prototype a part with internal cooling channels. A CNC machine would find this challenging, whereas a method like 3D printing could handle it more easily.

Technical Expertise

Operating CNC machines and designing CAD files isn’t straightforward. It requires a certain level of technical know-how. Not every manufacturer has the expertise needed for CNC machining prototyping. This is why many companies outsource to experienced firms like TMC Technologies.

Quote: “Designing a CAD file and generating a CAM file from it requires technical know-how. Additionally, setting up and operating the CNC machine requires some expertise.” –

Subtractive Manufacturing

CNC machining is a subtractive process, meaning it removes material from a workpiece to create the final part. This can lead to significant material waste, especially if the prototype isn’t perfect on the first try. The cost of wasted material can add up quickly, making CNC less economical compared to additive methods like 3D printing.

Fact: “Since it is highly unlikely that a prototype will be ideal on the first attempt, this adds to the waste of materials and its associated cost.” – source

Comparison with 3D Printing

While CNC machining offers high precision and material versatility, 3D printing has its own set of advantages. For one, 3D printing can easily create complex internal geometries that CNC machines struggle with. Additionally, 3D printing often produces less material waste, making it a more sustainable choice.

Table: CNC Machining vs. 3D Printing

Aspect	CNC Machining	3D Printing
Material Waste	High	Low
Internal Geometries	Limited	Excellent
Material Options	Wide Range	Growing Range
Precision	High	Varies

Quote: “One concern with traditional rapid prototyping methods like 3D printing is that they create something that looks like the 3D model and may even be able to move or function as intended but is dimensionally inaccurate.” – source

Understanding these limitations and considerations can help you make a more informed decision about whether CNC machining prototyping is right for your project.

Next, we’ll answer some frequently asked questions about CNC prototyping, including typical turnaround times and cost factors.

Frequently Asked Questions about CNC Prototyping

What is the typical turnaround time for CNC prototyping?

The turnaround time for CNC prototyping can vary widely based on several factors. Simple designs and smaller prototypes can often be completed in just a few hours. However, more complex designs or larger prototypes may take several days.

The service provider’s workload and the specific requirements of your project also play a significant role. Some providers offer rush services for an additional fee, which can significantly reduce processing time.

For example, WayKen highlights that CNC prototyping is relatively fast, making it possible to produce prototypes inexpensively and quickly compared to traditional methods.

How does CNC machining compare to 3D printing for prototyping?

CNC machining and 3D printing each have their strengths and weaknesses. Here’s a quick comparison:

Material Versatility:
– CNC machining supports a wide range of materials, including metals, plastics, and wood.
– 3D printing is mostly limited to thermoplastics, though advanced methods like DMLS can work with metals.

Precision and Tolerance:
– CNC machines have a tolerance of ±0.01 mm.
– Advanced 3D printing technologies like DMLS have a tolerance level of ±0.1 mm.

Part Toughness:
– CNC-produced parts are generally tougher and more durable.
– 3D-printed parts may not be as robust, especially if made from thermoplastics.

Cost:
– CNC processes are generally costlier due to the high cost of machinery and accessories.
– 3D printing can be more economical for small, complex parts.

Environmental Impact:
– CNC machining generates more waste, though chips can often be recycled.
– 3D printing is considered more sustainable due to its additive nature.

Choosing between the two methods depends on your specific project needs, including material, durability, and budget.

What factors affect the cost of CNC prototyping?

Several factors influence the cost of CNC prototyping:

1. Design Complexity: More complex designs require more programming and machining time.
2. Tolerances: Tighter tolerances may need additional setup and slower machining speeds.
3. Material Choice: Different materials have varying costs. Metals are generally more expensive than plastics.
4. Machine Type: The type of CNC machine used (e.g., 3-axis vs. 5-axis) can impact cost.
5. Surface Finishing: Additional post-processing like anodizing or chromate plating adds to the cost.

A simple formula to estimate costs could be:

(Hourly Rate + Material Costs + Labor) x (Complexity/Tolerances Multiplier) = Total Machining Cost

For a precise estimate, tools like the Xometry Instant Quoting Engine℠ can provide instant, detailed cost breakdowns based on your specific project parameters.

Understanding these factors can help you manage your budget and make informed decisions about your prototyping needs.

Conclusion

At TMC Technologies, we understand the critical role that efficient CNC machining prototyping plays in product development. Our expertise and state-of-the-art equipment make us a reliable partner for your prototyping needs.

Efficiency in Prototyping

Efficiency is key in prototyping, and our advanced CNC machines ensure that your prototypes are produced quickly and accurately. We use cutting-edge technology like multi-axis CNC machining and Swiss machining to minimize setup times and allow for unattended machine operation. This results in higher production volumes and faster turnaround times, without compromising on quality.

For instance, our use of multi-axis CNC machining allows for complex geometries to be machined in a single setup, reducing the time and cost associated with multiple setups. This is particularly beneficial for industries like aerospace and automotive, where precision and speed are paramount.

Custom Applications

We know that each project is unique. That’s why we offer customized solutions tailored to your specific needs. Whether you need a prototype made from aluminum, stainless steel, ABS, or any other material, we have the capability to meet your requirements.

Our commitment to customization extends beyond material selection. We offer a range of surface finishes, including anodizing, bead blasting, and chromate plating, to ensure your prototype meets all aesthetic and functional requirements.

Partner with TMC Technologies

Choosing TMC Technologies for your CNC prototyping needs means partnering with a team that values quality, precision, and efficiency. Our extensive industry experience and rigorous quality control measures ensure that you receive high-quality prototypes that meet your exact specifications.

We invite you to explore our capabilities and see how we can help bring your designs to life. From rapid prototyping to low-volume production, TMC Technologies is your trusted partner in CNC machining.

For more information and to get started on your next project, visit our CNC Prototyping Services page. Let’s bring your ideas to life with precision and speed.

Introduction

When it comes to maximizing the efficiency and precision of your machining processes, CNC lathe accessories are indispensable. Whether you’re looking for rotary tables, coolant systems, or tool turrets, the right accessories can significantly enhance your CNC lathe’s performance.

Here’s a quick list of essential CNC lathe accessories to get you started:

1. Tool Turrets: Automate tool changes for fast, precise operations.
2. Coolant Systems: Keep the machine and workpiece cool for longevity and accuracy.
3. Rotary Tables: Enable complex machining on multiple axes.
4. Control Panels: Advanced interfaces for improved usability and precision.

For those in the manufacturing industry, the importance of sourcing high-quality accessories cannot be overstated. Your machinery’s accuracy, reliability, and lifespan heavily depend on the components you integrate into your system.

We’ll delve into the top CNC lathe accessories you should consider to enhance your machining process, explore leading brands, and provide insights into improving precision and productivity.

Essential CNC Lathe Accessories

High-quality CNC lathe accessories can significantly enhance the performance and efficiency of your machining processes. Here are some must-have accessories:

Rotary Tables

Rotary tables are essential for complex machining tasks. They allow for precise rotation of the workpiece around a fixed axis, enabling multi-axis machining. This is particularly useful for intricate operations such as cutting gears or machining parts that require multiple angular cuts.

Example: A rotary table can be used to machine a complex gear profile that requires precise angular movements. By integrating a rotary table, you can achieve high precision and repeatability, reducing the need for manual adjustments.

Coolant Systems

Coolant systems play a crucial role in dissipating heat generated during machining. They help in lubricating the cutting tool, reducing friction, and extending the tool’s life. Coolant systems also prevent overheating, which can lead to material deformation and poor surface finish.

Fact: According to industry studies, effective coolant systems can increase tool life by up to 50%, making them an essential investment for any CNC lathe setup.

Computers

Modern CNC lathes rely heavily on computers for control and automation. Computers running advanced CNC software can handle complex programming, automate repetitive tasks, and ensure precise control over machining parameters. This reduces human error and increases productivity.

Case Study: A manufacturing company integrated high-performance computers with their CNC lathes, resulting in a 30% increase in production efficiency and a significant reduction in machining errors.

Drawbars

Drawbars are used to secure the tool holder in the spindle. A reliable drawbar ensures that the tool holder is tightly clamped, preventing any movement during machining. This is crucial for maintaining accuracy and achieving a high-quality finish on the workpiece.

Story: An operator at TMC Technologies noted a marked improvement in machining accuracy after upgrading to a high-quality drawbar. This simple change reduced tool chatter and improved the overall surface finish of the machined parts.

These CNC lathe accessories are essential for enhancing your machining process, improving precision, and increasing productivity. Investing in high-quality accessories ensures that your CNC lathe performs at its best, delivering consistent and accurate results.

Next, let’s explore the top brands that offer these essential accessories.

Top Brands for CNC Lathe Accessories

When it comes to CNC lathe accessories, choosing the right brand can make a significant difference in your machining process. Here are some of the top brands that are renowned for their quality and reliability:

Yamazaki Mazak

Yamazaki Mazak is a leader in the CNC industry, known for its innovative and high-performance machine tools. Their accessories, such as advanced control panels and high-precision chucks, are designed to enhance the functionality of CNC lathes. Mazak’s commitment to quality ensures that their products deliver exceptional accuracy and durability.

DMG MORI

DMG MORI is celebrated for its cutting-edge technology and robust machine tools. Their accessories, including the DMG Mori DMU 50 5-Axis Mill and the DMG Mori NLX 2000 Multi Spindle Lathe, are ideal for complex geometries and high-production environments. These accessories significantly reduce processing times and enhance productivity.

Trumpf

Trumpf is a global leader in manufacturing technology, offering a wide range of CNC lathe accessories. Their products are known for their precision and efficiency, making them a top choice for industries requiring high-quality machining solutions.

MAG

MAG provides a comprehensive range of CNC lathe accessories that cater to various machining needs. Known for their reliability and advanced features, MAG’s products help improve machining accuracy and efficiency, making them a popular choice among manufacturers.

Hardinge

Hardinge is synonymous with high precision. Their Super Precision Lathe accessories offer exceptional accuracy and surface finish, particularly suited for industries like medical and aerospace. Hardinge’s durable and long-lasting accessories are a wise investment for any shop focusing on super-precision tasks.

Haas

Haas is renowned for its user-friendly and reliable CNC machines. Their accessories, such as the Haas UMC 750 5-Axis Mill and the Haas SL Series Lathes, provide excellent versatility and precision. Haas accessories are designed to deliver good value and performance, making them a favorite among machinists.

AMADA

AMADA is a well-known name in the CNC industry, offering a variety of accessories that enhance machining capabilities. Their products are designed to deliver high precision and efficiency, ensuring that your CNC lathe operates at its best.

Okuma

Okuma offers a wide range of CNC lathe accessories that are known for their quality and reliability. Their products help improve machining accuracy and productivity, making them a trusted choice for many manufacturers.

Investing in accessories from these top brands ensures that your CNC lathe performs at its best, delivering consistent and accurate results. In the next section, we’ll discuss how these accessories can enhance precision and productivity in your machining process.

Enhancing Precision and Productivity

Chuck Types

Choosing the right chuck type is crucial for enhancing precision and productivity in CNC lathe operations. Let’s explore some common types:

Three-Jaw (Universal) Chucks: These are the go-to chucks for many machinists. They have stepped jaws on one end for various workpiece sizes and beveled jaws on the other end for smaller diameters. This versatility makes them ideal for general-purpose use.

Four-Jaw Chucks: Unlike three-jaw chucks, four-jaw chucks have independently adjustable jaws. This makes them perfect for clamping irregularly shaped objects or square pieces. While they require a bit more effort to center the workpiece, they offer unmatched flexibility.

Magnetic Chucks: Ideal for delicate workpieces, magnetic chucks use magnetic force to hold ferrous materials. They are perfect when the workpiece can’t withstand the clamping force of jaw chucks.

Collet Chucks: These chucks are highly precise but limited to cylindrical workpieces within a narrow diameter range. They are commonly used for holding tools and small workpieces that require high accuracy.

Tailstock and Its Importance

The tailstock is an essential component for ensuring stability and precision, especially for longer workpieces.

Tailstock Quill: The quill is the movable part of the tailstock that holds tools like drills or centering devices. It can be driven towards the workpiece for various operations, such as drilling or providing additional support.

Morse Taper: The Morse taper is a standardized system used to hold tools in the tailstock quill. It provides a secure fit and allows for easy tool changes, enhancing the efficiency of your machining process.

Advanced Control

Advanced control systems can significantly improve the efficiency and safety of your CNC lathe operations.

CNC Control Panel: The control panel is the brain of your CNC lathe. It allows you to enter, edit, and monitor programs. With its integrated screen, you can see G-code in real-time, making it easier to make adjustments and ensure accuracy.

Foot Switches: Foot switches provide hands-free control over various machine functions. They can open or close the chuck, position the tailstock, and even act as an emergency stop. This allows the operator to focus on the machining process without needing to constantly adjust settings manually.

Tool Turret Efficiency

The tool turret holds multiple cutting tools that can be quickly indexed into position, reducing downtime and increasing productivity.

Modular Adapters: These adapters allow for quick tool changes and make it easier to switch between different types of operations, such as turning, boring, and drilling.

Boring Heads: Boring heads are essential for enlarging holes with high precision. They can be easily mounted on the tool turret, allowing for quick transitions between different machining tasks.

Turning Tools: High-quality turning tools are crucial for achieving smooth finishes and precise dimensions. Using the right turning tools can significantly enhance the quality of your final product.

By understanding and utilizing these CNC lathe accessories, you can greatly enhance the precision and productivity of your machining process. In the next section, we’ll answer some frequently asked questions about CNC lathe accessories.

Frequently Asked Questions about CNC Lathe Accessories

What is the life expectancy of a CNC lathe with proper accessories?

The life expectancy of a CNC lathe can vary significantly based on usage, maintenance, and the quality of accessories used. Generally, a well-maintained CNC lathe equipped with high-quality accessories can last anywhere from 10 to 20 years or more. Regular maintenance, such as cleaning, lubrication, and timely replacement of worn-out parts, plays a crucial role in extending the machine’s lifespan.

For instance, using carbide-tipped tools from reputable suppliers like CutterShop can enhance performance and reduce wear and tear. Additionally, investing in reliable hydraulic or pneumatic chucks can minimize loading and unloading time, reducing operational stress on the machine.

How to choose the proper cutting tool for CNC lathes?

Choosing the right cutting tool for CNC lathes is vital for achieving high precision and efficiency. Here are some key factors to consider:

1. Material Compatibility: Ensure the cutting tool is suitable for the material you are machining. For example, carbide-tipped tools are excellent for hard materials like titanium and stainless steel.

2. Tool Quality: High-quality tools from specialist suppliers like CutterShop offer better durability and performance.

3. Precision Requirements: For high-precision tasks, opt for tools with high accuracy and reliability. This reduces the chances of sudden tool failure and ensures consistent quality.

4. Chip Breaking and Removal: Good chip breaking and removal capabilities are essential to prevent damage to the workpiece and the machine. This is particularly important for materials that produce long, stringy chips.

5. Supplier Expertise: Consult with your tool supplier to get recommendations based on your specific machining needs. They can provide insights into the best tools for your machine and the type of work you are doing.

What is the difference between a CNC lathe and a conventional lathe?

The primary differences between a CNC lathe and a conventional lathe lie in automation, precision, and efficiency:

1. Automation: CNC lathes are automated and controlled by computer programs, allowing for precise and repeatable operations. Conventional lathes require manual operation, which can lead to variations in the final product.

2. Precision: CNC lathes offer higher precision and can achieve tighter tolerances, often within +/- 0.001 inches. Conventional lathes rely on the operator’s skill, making it harder to achieve the same level of accuracy.

3. Efficiency: CNC lathes can perform complex operations quickly and efficiently, reducing production time. Conventional lathes are slower and require more manual intervention.

4. Capabilities: CNC lathes can handle complex geometries and intricate designs with ease. Conventional lathes are better suited for simpler tasks and are limited by the operator’s capabilities.

By understanding these differences, you can make an informed decision about which type of lathe is best suited for your specific machining needs.

In the next section, we’ll conclude our discussion on CNC lathe accessories and provide some final thoughts on enhancing your machining process.

Conclusion

As we’ve explored the various CNC lathe accessories that can significantly enhance your machining process, it’s clear that the right tools and components can make all the difference. From advanced chucks and tool turrets to improved coolant systems and control panels, each accessory plays a crucial role in boosting precision, productivity, and overall efficiency.

At TMC Technologies, we understand the critical importance of these factors to your success. Our commitment is not just to provide high-quality CNC components but to enable your business to achieve new levels of precision and efficiency. We offer a wide range of CNC machining services tailored to meet your unique needs, whether you’re working on intricate metal parts that require the utmost accuracy or looking for the reliability and speed of automated control.

Choosing TMC Technologies means opting for a partner who understands the nuances of high-precision CNC lathe work. Our expertise in CNC machining services is about more than just providing equipment; it’s about empowering your business to excel. With advancements in CNC lathe technology, including multiaxis machining and numerical control, the possibilities for what you can create are virtually limitless.

We invite you to explore how our CNC machining services can transform your manufacturing capabilities. Whether you’re looking to push the boundaries of what’s possible in your field or simply aiming to enhance the quality and precision of your products, we’re here to support you every step of the way.

Discover the difference that high-quality CNC components from TMC Technologies can make in your projects. For a deeper dive into our services and how we can assist you in achieving your manufacturing goals, visit our CNC Machining Capabilities page.

In the realm of precision machining, every detail counts. Let us help you ensure that your work not only meets but exceeds expectations. With TMC Technologies, unlock the full potential of high-precision CNC lathes and propel your business towards unparalleled success in custom applications and beyond.

Introduction

Looking for a 3-axis CNC aluminum machine to cut precise aluminum parts? We’ve got you covered!

• Shapeoko HDM: High power, great for heavy-duty tasks.
• PrintNC: Custom build, known for its rigidity.
• Nomad 3: Ideal for hobbyists and light aluminum cutting.
• G0704: Vertical mill perfect for conversions.
• PM25: Another solid choice for vertical mill conversions.

Precision is key when working with aluminum. Accurate, well-finished parts can make or break your project. At TMC Technologies, we know the importance of quality and precision in machining. Whether you are crafting parts for aerospace, medical devices, or industrial machinery, having the right CNC machine is crucial.

We’ll dive into the best 3-axis CNC machines for aluminum, covering their costs, capabilities, and limitations. Let’s find the perfect machine to meet your needs!

Top 5 3-Axis CNC Machines for Aluminum

Shapeoko HDM

The Shapeoko HDM is a robust option for those looking to mill aluminum with precision. It features a powerful 2.2kw spindle, which is more than adequate for cutting through soft metals. One of the standout features of the Shapeoko HDM is its rigidity, which is essential for maintaining accuracy when working with aluminum.

However, it’s important to note that the Shapeoko HDM is currently US-only. This means international users might face challenges with shipping and support. Despite this limitation, the machine’s assembled delivery on a pallet ensures you can start working almost immediately without the hassle of self-assembly.

PrintNC

If you’re open to a self-build option, the PrintNC is worth considering. This machine stands out due to its rigidity and the use of large box section steel for its frame, which significantly enhances its stability. The PrintNC community is also incredibly supportive, with a Discord channel offering real-time help and advice.

The PrintNC allows for customization, including the choice of spindle power. While this means you can opt for a powerful spindle, the initial setup and assembly might be daunting for beginners. However, the flexibility and support from the community can make this a rewarding project.

Nomad 3

For those in the hobby range, the Nomad 3 by Carbide 3D is a solid choice. This machine is designed for light metal cutting and is particularly user-friendly for beginners. The Nomad 3 comes pre-assembled and is ready to use out of the box, making it a convenient option.

While it may not have the same power as the Shapeoko HDM or the rigidity of the PrintNC, the Nomad 3 excels in ease of use and support. It’s perfect for smaller projects and those who are just starting with CNC machining.

G0704

The G0704 is a popular choice for those looking to convert a vertical mill into a CNC machine. Manufactured by Grizzly, this mill is known for its sturdiness and reliability. The conversion process involves adding CNC components to the manual mill, which can be a fun and educational project for enthusiasts.

One of the main advantages of the G0704 is its cost-effectiveness. With a budget of around $5,000, you can have a capable machine that performs well for aluminum milling. However, keep in mind that you’ll need to invest time and effort into the conversion process.

PM25

Similar to the G0704, the PM25 by Precision Matthews is another vertical mill that can be converted into a CNC machine. This mill is slightly more robust than the G0704, offering better precision and durability. The PM25 is ideal for those who need a more heavy-duty machine without breaking the bank.

Converting the PM25 involves a similar process to the G0704, requiring additional components and some technical know-how. Once converted, the PM25 can handle aluminum milling with ease, making it a great option for serious hobbyists and small-scale production.

These top 3-axis CNC machines for aluminum each have their own strengths and limitations. Whether you prefer a ready-to-use option like the Shapeoko HDM and Nomad 3, or you’re up for the challenge of a self-build or conversion with the PrintNC, G0704, or PM25, there’s a machine to suit your needs and budget.

Key Features to Look for in a 3-Axis CNC Machine

When choosing a 3-axis CNC aluminum machine, consider several key features that will impact performance and precision. Here are the four main aspects to focus on:

Spindle Power

The spindle is the heart of your CNC machine, dictating its cutting power and speed. For cutting aluminum, you’ll need a robust spindle. A popular choice is the Makita router, but for more demanding tasks, a 2.2kw spindle offers higher torque and better speed control.

• Voltage Options: Spindles come in 110v and 220v variants. The 220v option typically provides more power and is more efficient, but it requires a compatible power source.

Rigidity

Rigidity is crucial for precision and durability. A sturdy frame minimizes vibrations and deflections, ensuring accurate cuts.

• Frame Design: Look for designs using steel tubing or aluminum extrusions. Steel tubing offers superior rigidity, but aluminum extrusions are lighter and easier to work with.

• Support Structures: Consider additional support structures like C3 ballscrews and linear rails to enhance stability and precision.

Work Area

The work area determines the size of the parts you can produce. Balancing a small footprint with a large enough work area is key.

• Small Footprint: Machines like the Nomad 3 offer a compact design, perfect for limited spaces.
• Large Work Area: If you need to work on larger pieces, machines like the Shapeoko HDM provide a bigger workspace but require more room.

Precision

Precision is non-negotiable when working with aluminum. High-quality components and meticulous design contribute to achieving tight tolerances.

• C3 Ballscrews: These provide high precision and low backlash, essential for detailed work.
• Linear Rails: Ensure smooth and accurate movements, reducing errors.
• Micromachining Capabilities: For intricate parts, look for machines capable of micromachining. This ensures even the smallest details are cut with precision.

By focusing on these key features—spindle power, rigidity, work area, and precision—you can select a 3-axis CNC machine that meets your needs for cutting aluminum with accuracy and efficiency.

Next, let’s address some common questions about 3-axis CNC machines.

Frequently Asked Questions about 3-Axis CNC Machines

What are the limitations of 3-axis CNC machines?

Linear Movements: A 3-axis CNC machine can only move the cutting tool along the X, Y, and Z axes. This means it can’t perform complex tasks that require rotation around these axes, such as cutting intricate geometries or undercuts.

Multiple Setups: Because of their limited range of motion, 3-axis machines often require multiple setups to complete a part. This can be time-consuming and may introduce errors if the part is not realigned perfectly.

Part Complexity: With only three axes, there’s a limit to the complexity of parts you can produce. While great for simpler tasks, more intricate parts may need a machine with additional axes.

Can a 3-axis CNC machine cut aluminum?

Absolutely, a 3-axis CNC machine can cut aluminum, but certain factors need to be considered:

Proper Setup: Ensuring the machine is properly set up is crucial. This includes using the right cutting tools and feed rates to avoid damaging the machine or the material.

Spindle Power: The spindle needs to be powerful enough to handle aluminum. For example, the Shapeoko HDM’s 2.2kw spindle is ideal for this type of work.

Rigidity: The machine’s frame must be rigid to handle the forces involved in cutting aluminum. A robust frame design, like those made from steel tubing or aluminum extrusion, can make a big difference.

How much does a 3-axis CNC machine cost?

The cost of a 3-axis CNC machine can vary significantly based on features and capabilities:

High-End Options: Machines designed for industrial use can range from $50,000 to $125,000. These machines offer high precision, advanced features, and robust build quality.

Budget Options: For hobbyists or small workshops, more affordable options like the Nomad 3 or the Shapeoko HDM are available. These can cost anywhere from a few hundred to a few thousand dollars, offering a good balance between cost and capability.

By understanding these factors—limitations, cutting aluminum, and cost—you can make an informed decision when choosing a 3-axis CNC machine.

Conclusion

In summary, choosing the right 3-axis CNC machine for aluminum can significantly impact your machining projects. From spindle power to rigidity, work area, and precision, every feature plays a crucial role in determining the machine’s capability to handle aluminum effectively.

TMC Technologies stands out as a leader in precision machining, offering a range of services that cater to various industries, including aerospace, automotive, and medical sectors. With our state-of-the-art facility and experienced machinists, we ensure the highest quality workmanship and exceptional service.

Whether you’re a hobbyist looking for a reliable machine like the Nomad 3 or a professional seeking industrial-grade equipment, there are options available to suit every need and budget. By considering the key features and understanding the limitations, you can make an informed decision that meets your specific requirements.

For more information about our CNC machining capabilities or to get started on your project, visit our capabilities overview page. We look forward to helping you achieve precision in your machining endeavors.

Feel free to explore our other resources and services to enhance your machining projects. With TMC Technologies, you’re not just getting a service; you’re partnering with experts dedicated to pushing the boundaries of precision and innovation.
